McCormick CX70 Tractor Inframe Engine Kit
(Click here to view all Engine Parts for your McCormick CX70 Tractor)
| Perkins- 1004-42 / N4.421, Thru U284277J, belt water pump, balancer, notched rod |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 258 | Diesel | 4 | 4.056 | 5 |
| Rod Journal | Main Journal |
| 2.4988-2.4996 | 2.9984-2.9992 |
| Engine Notes: Naturally Aspirated, Thru U284277J |
Kit Contents: (4) Piston Ring Sets (4) Piston Ring Sets Select Bore Size Standard Part # M4181A045 .020 / .50mm Part # M4181A046 .040 / 1.00mm Part # M4181A047 ;(1) Thrust Washer Set Part#MU5TW0002 ;(1) Head Gasket Set Part#MU5LT0317 ;(4) Pistons (4) Pistons Select Bore Size Standard Part # MU5LP0058 .020 / .50mm Part # MU5LP0058B .040 / 1.00mm Part # MU5LP0058D ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # MU5ME0006 .010 / .25mm Part # MU5ME0006A .020 / .50mm Part # MU5ME0006B .030 / .75mm Part # MU5ME0006C ;(1) Oil Pan Gasket Part#M3681K003 ;(1) Oil Pan Gasket Part#M3681K005 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # M81558 .010 / .25mm Part # M81558A .020 / .50mm Part # M81558B .030 / .75mm Part # M81558C .040 / 1.00mm Part # M81558D .050 / 1.25mm Part # M81558E .060 / 1.50mm Part # M81558F ;
OEM Reference: N/A
Kit Notes: belt driven pump, fastram piston, balancer, notched rods
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| 80 ft/lbs, 80 ft/lbs short bolts +150 degrees, medium bolts +180 degrees, long bolts +210 degrees | 196 ft/lbs | 92 ft/lbs nuts, 114 ft/lbs bolts |
| Intake Valve Lash | Exhaust Valve Lash |
| 008" (.203 mm) | 018" (.450 mm) |

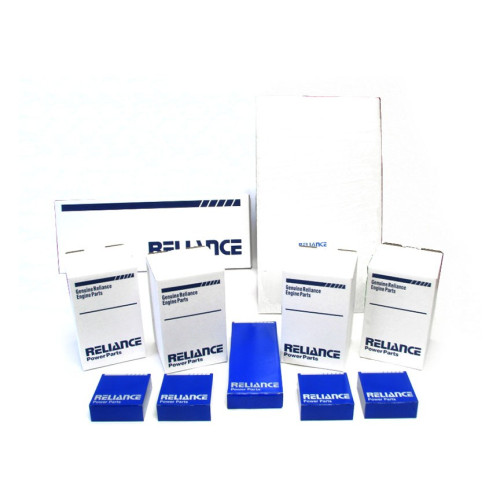

McCormick CX70 Tractor Inframe Engine Kit (Diesel - 258 CID) - RP974432
- Brand Category: McCormick
- Product Code: RP974432[974432]-CX70
- $813.96
-
$769.19
