Description

Massey Ferguson 40E Wheel Tractor Overhaul Engine Kit

(Click here to view all Engine Parts for your Massey Ferguson 40E Wheel Tractor)

Perkins- T3.152.4, 3 ring, dish bowl, rectangular top ring

Engine CID	Fuel Type	Cylinders	Bore	Stroke
152	Diesel	3	3.602	5

Rod Journal	Main Journal
2.2484-2.2492	2.7485-2.7493

Engine Notes: Turbocharged

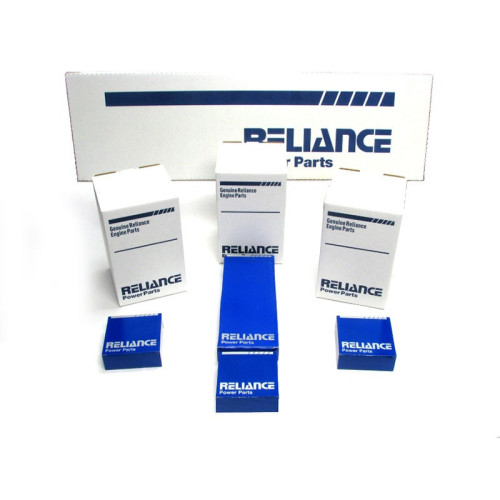

Kit Contents: (3) Cylinder Sleeve Part#M31358356 ;(3) Piston Ring Set Part#M41158144 ;(1) Thrust Washer Set Part#MU5TW0003 ;(1) Head Gasket Set Part#MU5LT1139 ;(1) Conversion Gasket Set Part#MU5LB1112 ;(3) Piston Part#MU5LP0017 ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # M85035 .010 / .25mm Part # M85035A .020 / .50mm Part # M85035B .030 / .75mm Part # M85035C ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # M68084 .010 / .25mm Part # M68084A .020 / .50mm Part # M68084B .030 / .75mm Part # M68084C .040 / 1.00mm Part # M68084D .050 / 1.25mm Part # M68084E .060 / 1.50mm Part # M68084F ;(1) Fuel Line Seal Kit Part#RP371235 ;
OEM Reference: N/A
Kit Notes: 3 ring, dish bowl, rectangular top ring, keyed crankshaft
Additional Details: straight liners

Head Torque	Main Torque	Rod Torque
60 ft/lbs nuts, 70 ft/lbs bolts	110-115 ft/lbs	70 ft/lbs self locking nut, 45 ft/lbs silver, 60 ft/lbs black

Intake Valve Lash	Exhaust Valve Lash
008 hot & cold (.203mm)	012" hot & cold (.305 mm)

Massey Ferguson 40E Wheel Tractor Overhaul Engine Kit (Diesel - 152 CID) - RP975152

Brand Category: Massey Ferguson
Product Code: RP975152[975152]-40E
