Massey Ferguson 396 Tractor Premium Overhaul Engine Kit
(Click here to view all Engine Parts for your Massey Ferguson 396 Tractor)
| Perkins- 1006-6 / 6.60, 1.375\" piston pin, most YA build lists |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 365 | Diesel | 6 | 3.938 | 5 |
| Rod Journal | Main Journal |
| 2.4990-2.5000 | 2.9980-2.9990 |
| Engine Notes: Naturally Aspirated |

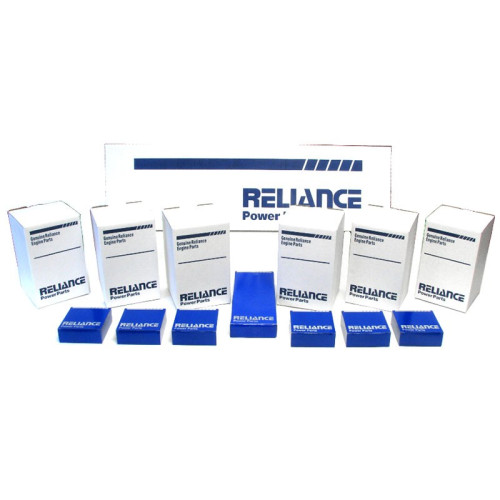

Kit Contents: (1) Rear Crankshaft Seal Part#M2418F475 ;(1) Front Crankshaft Seal Part#M2418F437 ;(6) Piston Pin Bushing Part#M31134123 ;(1) Camshaft Bearing Part#M31134165 ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # MU5ME0003 .010 / .25mm Part # MU5ME0003A .020 / .50mm Part # MU5ME0003B .030 / .75mm Part # MU5ME0003C ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # MU5MB0007 .010 / .25mm Part # MU5MB0007A .020 / .50mm Part # MU5MB0007B .030 / .75mm Part # MU5MB0007C ;(1) Thrust Washer Set Part#MU5TW0002 ;(6) Cylinder Kit Part#MU5MK0142 ;(1) Conversion Gasket Set-less crank seals Part#MU5LB1167 ;(1) Head Gasket Set Part#MU5LT0180 ;(12) Connecting Rod Bolt Nut Part#M33221328 ;(12) Connecting Rod Bolt Part#M32762145 ;(24) Valve Keeper Part#M0230002 ;(6) Exhaust Valve Part#M3142A051 ;(6) Intake Valve Part#M3142L051 ;(6) Valve Guide Part#M3343F041 ;(6) Valve Guide Part#M3343J021 ;(12) Valve Spring Part#M31745122 ;(12) Valve Spring Part#M31744133 ;
OEM Reference: N/A
Kit Notes: quadram piston, 1.375" piston pin diameter, most YA build lists
Additional Details: engine with dual valve springs
| Head Torque | Main Torque | Rod Torque |
| 80 ft/lbs short bolts: 150 degrees medium bolts: 180 degrees long: 210 degrees | 185 ft/lbs | 92 ft/lbs |
| Intake Valve Lash | Exhaust Valve Lash |
| 008" (.203 mm) | 018" (.457 mm) |
Massey Ferguson 396 Tractor Premium Overhaul Engine Kit (Diesel - 365 CID) - RP977473
- Brand Category: Massey Ferguson
- Product Code: RP977473[977473]-396
- $1,023.12
-
$966.85
