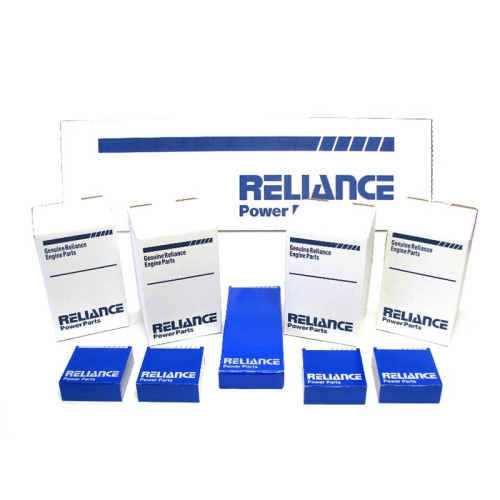

Massey Ferguson 290 Tractor Premium Overhaul Engine Kit
(Thru 3/4/94)
Click here to view all Engine Parts for your Massey Ferguson 290 Tractor
| Perkins- 4.248, After U108196N, flanged liners no fire dam, 6 bolt balancer |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 248 | Diesel | 4 | 3.979 | 5 |
| Rod Journal | Main Journal |
| 2.4988-2.4996 | 2.9984-2.9992 |
| Engine Notes: After U108196N |
Kit Contents: (1) Fuel Line Seal Kit Part#RP371235 ;(4) Valve Guide Part#M3343F041 ;(4) Valve Guide Part#M3343J021 ;(8) Valve Spring Part#M31745121 ;(8) Connecting Rod Bolt Nut Part#M33221328 ;(8) Connecting Rod Bolt Part#M32762145 ;(2) Rear Crank Seal-(1 half piece) Part#M36883108 ;(1) Head Gasket Set Part#MU5LT1004 ;(1) Conversion Gasket Set Part#MU5LB0145 ;(1) Thrust Washer Set Part#MU5TW0002 ;(4) Cylinder Kit Part#MU5MKX034 ;(4) Intake Valve Part#M31431315 ;(8) Valve Spring Part#M31744131 ;(4) Exhaust Valve Part#M3142A052 ;(4) Piston Pin Bushing Part#M31134123 ;(1) Camshaft Bearing Part#M31134165 ;(1) Front Crankshaft Seal Part#M2418F437 ;(1) Rear Crankshaft Seal Part#M2418F475 ;(16) Valve Keeper Part#M0230002 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # M81558 .010 / .25mm Part # M81558A .020 / .50mm Part # M81558B .030 / .75mm Part # M81558C .040 / 1.00mm Part # M81558D .050 / 1.25mm Part # M81558E .060 / 1.50mm Part # M81558F ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # M85042 .010 / .25mm Part # M85042A .020 / .50mm Part # M85042B .030 / .75mm Part # M85042C .040 / 1.00mm Part # M85042D ;
OEM Reference: N/A
Kit Notes: flanged liners no fire dam, 6 bolt balancer
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| 88 ft/lbs bolts with flange washer, 100 ft/lbs bolts with washer | 150 ft/lbs, after engine serial U6330 & UA58746: 180 ft/lbs | 70 ft/lbs silver, 90 ft/lbs black |
| Intake Valve Lash | Exhaust Valve Lash |
| 012" cold (.305 mm) | 012" cold (.305 mm) |
Massey Ferguson 290 Tractor Premium Overhaul Engine Kit (Diesel - 248 CID) - RP977199
- Brand Category: Massey Ferguson
- Product Code: RP977199[977199]-290
- $622.02
-
$587.81
