Massey Ferguson 24 Telescopic Handler Major Overhaul Engine Kit

Perkins- A4.236, 236UA109215L - U106654N, 2.769\" CD flanged liners w/ fire dam, Ag block, 4 bolt balancer

Engine CID	Fuel Type	Cylinders	Bore	Stroke
236	Diesel	4	3.877	5

Rod Journal	Main Journal
2.4988-2.4996	2.9984-2.9992

Engine Notes: 236UA109215L - U106654N

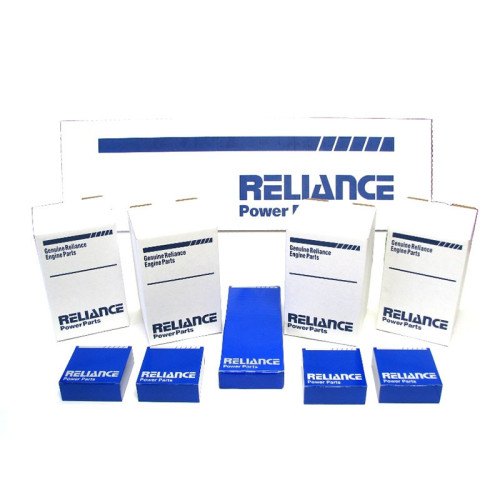

Kit Contents: (1) Main Bearing Set (1) Main Bearing Set Standard Part # M81558 .010 / .25mm Part # M81558A .020 / .50mm Part # M81558B .030 / .75mm Part # M81558C .040 / 1.00mm Part # M81558D .050 / 1.25mm Part # M81558E .060 / 1.50mm Part # M81558F ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # M85042 .010 / .25mm Part # M85042A .020 / .50mm Part # M85042B .030 / .75mm Part # M85042C .040 / 1.00mm Part # M85042D ;(8) Connecting Rod Bolt Part#M32762145 ;(8) Connecting Rod Bolt Nut Part#M33221328 ;(1) Thrust Washer Set Part#MU5TW0002 ;(4) Cylinder Kit Part#MU5MK0123 ;(1) Head Gasket Set Part#MU5LT1004 ;(1) Conversion Gasket Set Part#MU5LB1158 ;(1) Front Crankshaft Seal Part#M2418F437 ;(1) Rear Crankshaft Seal Part#M2418F475 ;(4) Piston Pin Bushing Part#M31134123 ;(1) Camshaft Bearing Part#M31134165 ;(1) Fuel Line Seal Kit Part#RP371235 ;
OEM Reference: N/A
Kit Notes: 5 ring pistons, 2.769" CD flanged liners with fire dam, Agricultural block, 4 bolt balancer
Additional Details: None

Head Torque	Main Torque	Rod Torque
100 ft/lbs, 88 ft/lbs flanged bolt	150 ft/lbs, after engine serial U82408, UA50507, UC19949, UE4404, US12129: 180 ft/lbs	70 ft/lbs silver, 90 ft/lbs black

Intake Valve Lash	Exhaust Valve Lash
012" cold (.305 mm)	012" cold (.305 mm)

Massey Ferguson 24 Telescopic Handler Major Overhaul Engine Kit (Diesel - 236 CID) - RP976133

Choose Your Main Bearing Size (Not all Sizes Are Available)

Choose your Rod Bearing Size (not all sizes available)

Qty
