Manitou MT1337 SLT Telescopic Handler Major Overhaul Engine Kit

(Click here to view all Engine Parts for your Manitou MT1337 SLT Telescopic Handler)

Perkins- 1004-40T / T4.401 / CCW4.401, Thru U284277J, gear pump, no balancer, notched rod, 45 degree valve
Engine CIDFuel TypeCylindersBoreStroke
243Diesel43.9385
Rod JournalMain Journal
2.4990-2.50002.9980-2.9990
Engine Notes: Turbocharged, Thru U284277J

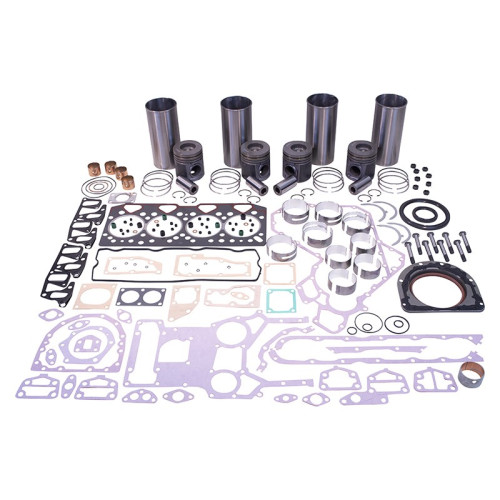

  • Kit Contents: (1) Head Gasket Set Part#MU5LT0202 ;(1) Conversion Gasket Set Part#MU5LB1171 ;(1) Thrust Washer Set Part#MU5TW0002 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # M81558 .010 / .25mm Part # M81558A .020 / .50mm Part # M81558B .030 / .75mm Part # M81558C .040 / 1.00mm Part # M81558D .050 / 1.25mm Part # M81558E .060 / 1.50mm Part # M81558F ;(4) Cylinder Kit Part#RP171374 ;(1) Camshaft Bearing Part#M31134165 ;(4) Piston Pin Bushing Part#M3112E011 ;(1) Rear Crankshaft Seal Part#M2418F475 ;(1) Rear Crankshaft Seal Part#M2418F701 ;(1) Front Crankshaft Seal Part#M2418F437 ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # MU5ME0006 .010 / .25mm Part # MU5ME0006A .020 / .50mm Part # MU5ME0006B .030 / .75mm Part # MU5ME0006C ;(8) Connecting Rod Bolt Part#M32762145 ;(8) Connecting Rod Bolt Nut Part#M33221328 ;

  • OEM Reference: N/A

  • Kit Notes: gear drive pump, fastram piston, no balancer, notched rod, 45 degree valves

  • Additional Details: None

Head TorqueMain TorqueRod Torque
80 ft/lbs short bolts +150 degrees, medium bolts +180 degrees, long +210 degrees185 ft/lbs92 ft/lbs nuts, 114 ft/lbs bolts
Intake Valve LashExhaust Valve Lash
008" (.203 mm)018" cold (.457 mm)




Manitou MT1337 SLT Telescopic Handler Major Overhaul Engine Kit (Diesel - 243 CID) - RP976422

  • Brand Category: Manitou
  • Product Code: RP976422[976422]-MT1337 SLT
  • $817.50
  • $776.63
