John Deere 4455 Mufflers/Exhaust Pipes | Mufflers | RE20224

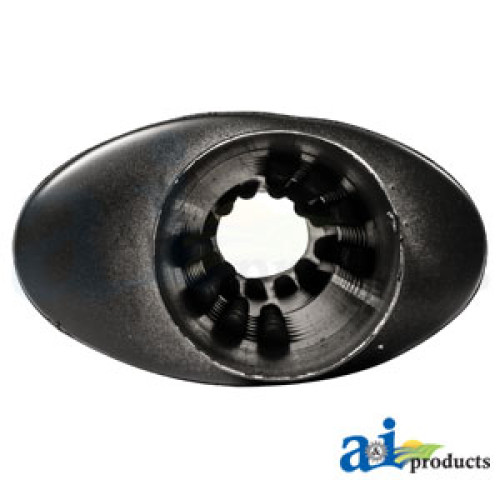

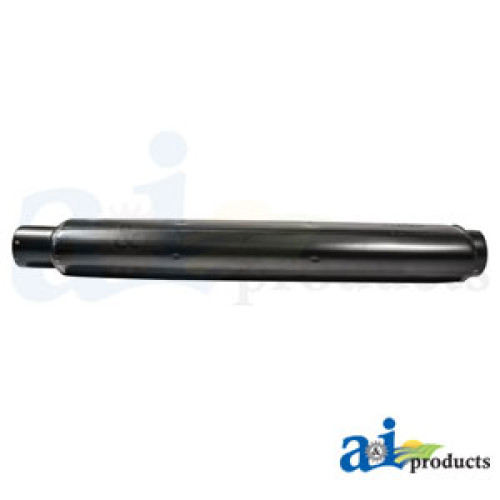

Vertical / Oval Body - 4 3/4" X 8" Shell Dimension. NEW DESIGN REPLACES FLARED INLET, This Muffler Can also be used on ENG 4239D & T, 4276D & T, 6359D & T, 6414D & T, 6466D & T Stationary & Industrial Engine Applications.

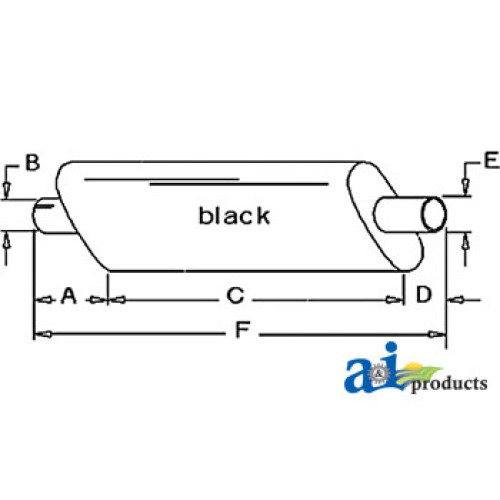

Dim A (1): A: 1 1/2" INLET LENGTH

Dim B (2): B: 3 15/16" INLET I.D.

Dim C (3): C: 33" SHELL LENGTH

Dim D (4): D: 3" OUTLET LENGTH

Dim E (5): E: 3 1/2" OUTLET O.D.

Dim F (6): F: 37" OVERALL LENGTH

Replaces: AR48773, AR61073, AR86599
