JCB 716 Dump Truck Inframe Engine Kit
(2nd design: except YB31263 & YD80779; can upgrade to 3rd design overhaul kit or complete piston sets)
Click here to view all Engine Parts for your JCB 716 Dump Truck
| Perkins- 1006-6T / T6.60, 1.500\" piston pin, most YB build lists |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 365 | Diesel | 6 | 3.938 | 5 |
| Rod Journal | Main Journal |
| 2.4990-2.5000 | 2.9980-2.9990 |
| Engine Notes: Turbocharged |

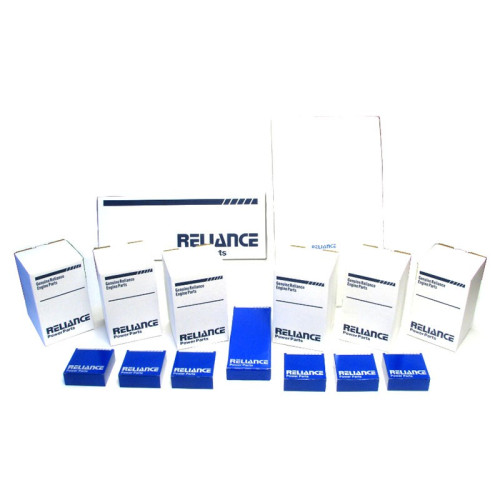

Kit Contents: (1) Main Bearing Set (1) Main Bearing Set Standard Part # MU5MB0007 .010 / .25mm Part # MU5MB0007A .020 / .50mm Part # MU5MB0007B .030 / .75mm Part # MU5MB0007C ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # MU5ME0003 .010 / .25mm Part # MU5ME0003A .020 / .50mm Part # MU5ME0003B .030 / .75mm Part # MU5ME0003C ;(6) Cylinder Sleeve Part#M3135X042 ;(1) Thrust Washer Set Part#MU5TW0002 ;(1) Oil Pan Gasket Part#M3681M005 ;(6) Piston Part#MU5LL0014 ;(1) Head Gasket Set Part#MU5LT1179 ;(6) Piston Ring Set Part#M4181A026 ;
OEM Reference: N/A
Kit Notes: quadram piston, 1.500" piston pin diameter, most YB build lists
Additional Details: kit contains pan gasket for non-stressed sump, order M3681M007 for stressed sump cast iron oil pan
| Head Torque | Main Torque | Rod Torque |
| N/A | N/A | N/A |
| Intake Valve Lash | Exhaust Valve Lash |
| N/A | N/A |
JCB 716 Dump Truck Inframe Engine Kit (Diesel - 365 CID) - RP974474
- Brand Category: JCB
- Product Code: RP974474[974474]-716
- $1,078.80
-
$1,019.47
