International 151 Hillside Combine Overhaul Engine Kit

International- D282, DT282, Diesel, 1.125\" pin, 4.165\" OD flange, 3.75\" thrust bearing flange

Engine CID	Fuel Type	Cylinders	Bore	Stroke
282	Diesel	6	3.6875	4.39

Rod Journal	Main Journal
N/A	N/A

Engine Notes: 1.125" pin, wide flange liner

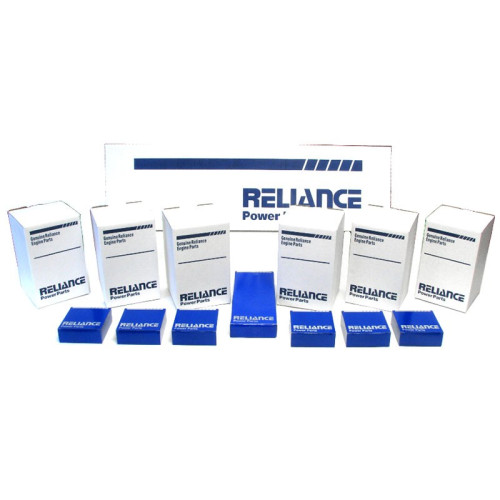

Kit Contents: (1) Overhaul Gasket Set Part#7310386 ;(6) Cylinder Kits (6) Cylinder Kits Select Cylinder Kit Size Standard Part # 7609344 .002 Part # RP141156 .005 Part # RP141157 .010 / .25mm Part # RP141158 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # RP926 .010 / .25mm Part # RP92610 .020 / .50mm Part # RP92620 .030 / .75mm Part # RP92630 ;(6) Rod Bearings (6) Rod Bearings Select Rod Bearing Size Standard Part # 7367408 .002 Part # 7367632 .010 / .25mm Part # 7367666 .020 / .50mm Part # 7367668 .030 / .75mm Part # 7367631 .040 / 1.00mm Part # 7367633 ;
OEM Reference: N/A
Kit Notes: liner with .188" thick x 4.165" OD flange, 3.75" thrust main bearing flange diameter
Additional Details: 1.125" piston pin diameter

Head Torque	Main Torque	Rod Torque
90 ft/lbs	100-110 ft/lbs	75-85 ft/lbs

Intake Valve Lash	Exhaust Valve Lash
027" hot (.686 mm)	030" hot (.762 mm)

International 151 Hillside Combine Overhaul Engine Kit (Diesel - 282 CID) - RP945178

Choose Your Main Bearing Size (Not all Sizes Are Available)

Choose your Rod Bearing Size (not all sizes available)

Qty
