Gradall 534B Telescopic Handler Inframe Engine Kit

Perkins- T4.236, Thru U027773M, hi-comp low ring piston, 1.5\" pin, flanged liners w/ fd, no balancer

Engine CID	Fuel Type	Cylinders	Bore	Stroke
236	Diesel	4	3.877	5

Rod Journal	Main Journal
2.4988-2.4996	2.9984-2.9992

Engine Notes: Turbocharged, Thru U027773M

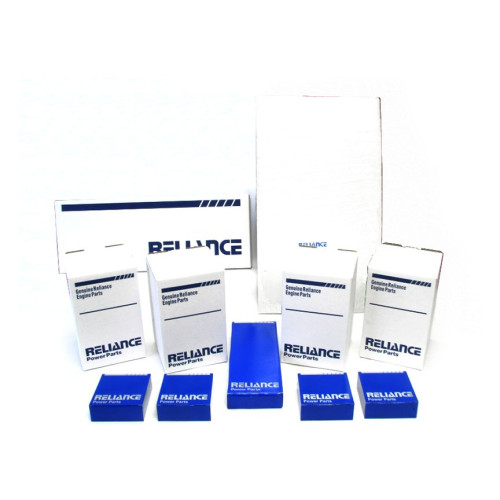

Kit Contents: (1) Oil Pan Gasket Part#M3681K005 ;(1) Oil Pan Gasket Part#M3681K003 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # M81558 .010 / .25mm Part # M81558A .020 / .50mm Part # M81558B .030 / .75mm Part # M81558C .040 / 1.00mm Part # M81558D .050 / 1.25mm Part # M81558E .060 / 1.50mm Part # M81558F ;(1) Thrust Washer Set Part#MU5TW0002 ;(1) Head Gasket Set Part#MU5LT1006 ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # MU5ME0006 .010 / .25mm Part # MU5ME0006A .020 / .50mm Part # MU5ME0006B .030 / .75mm Part # MU5ME0006C ;(4) Cylinder Kit Part#RP171384 ;
OEM Reference: N/A
Kit Notes: hi-comp low ring piston, 1.500" pin, 30 degree intakes, flanged liners with fd, no balancer
Additional Details: None

Head Torque	Main Torque	Rod Torque
100 ft/lbs, 88 ft/lbs flanged bolt	150 ft/lbs, after engine serial U82408, UA50507, UC19949, UE4404, US12129: 180 ft/lbs	70 ft/lbs silver, 90 ft/lbs black

Intake Valve Lash	Exhaust Valve Lash
012" cold (.305 mm)	012" cold (.305 mm)

Gradall 534B Telescopic Handler Inframe Engine Kit (Diesel - 236 CID) - RP974246

Choose Your Main Bearing Size (Not all Sizes Are Available)

Choose your Rod Bearing Size (not all sizes available)

Qty
