Ford New Holland L785 Skid Loader Inframe Engine Kit
(Click here to view all Engine Parts for your Ford New Holland L785 Skid Loader)
| Ford New Holland- 201, Diesel, BSD333, 09/92-05/94, 1.250\" rod bearings |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 201 | Diesel | 3 | 4.4007 | 4.4 |
| Rod Journal | Main Journal |
| 2.7496-2.7504 | 3.3714-3.3722 |
| Engine Notes: BSD333 |

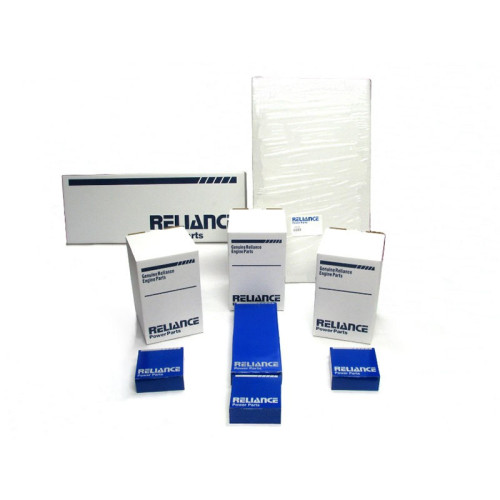

Kit Contents: (3) Piston & Rings (3) Piston & Rings Select Bore Size Standard Part # F161243 .020 / .50mm Part # F161244 .030 / .75mm Part # F161245 .040 / 1.00mm Part # F161246 ;(3) Rod Bearings (3) Rod Bearings Select Rod Bearing Size Standard, 1.25" width Part # F261215 .010 / .25mm, 1.25" width Part # F261217 .020 / .50mm, 1.25" width Part # F261218 .030 / .75mm, 1.25" width Part # F261219 .040 / 1.00mm, 1.25" width Part # F261221 ;(1) Head Gasket Set Part#F361143 ;(1) Oil Pan Gasket Part#F361146 ;(1) Oil Pan Gasket Part#F361127 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # F261175 .010 / .25mm Part # F261177 .020 / .50mm Part # F261178 .030 / .75mm Part # F261179 ;
OEM Reference: 73342009
Kit Notes: no ring groove insert, 1.250" wide rod bearings, mains with 2 slots, thrust with slot and hole
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| 1/2" bolts: 90, 100, 110 ft/lbs, 9/16" bolts: 115, 140, 160 ft/lbs | 115-125 ft/lbs | 60-65 ft/lbs |
| Intake Valve Lash | Exhaust Valve Lash |
| 014-.016" hot | 017-.021" hot (.432-.533 mm) |
Ford New Holland L785 Skid Loader Inframe Engine Kit (Diesel - 201 CID) - 73342009 | F73342009
- Brand Category: Ford | New Holland
- Product Code: F73342009[964195]-L785
- $570.72
-
$539.33
