Ford New Holland FT110 Tractor Inframe Engine Kit

Ford New Holland- 304, 5.0L Turbocharged Non-Emission, 11/91 \u0026 After, 1.625\" piston pin

Engine CID	Fuel Type	Cylinders	Bore	Stroke
304	Diesel	4	4.4007	5

Rod Journal	Main Journal
N/A	3.3713-3.3723

Engine Notes: 5.0L Turbocharged (Non-Emissionised)

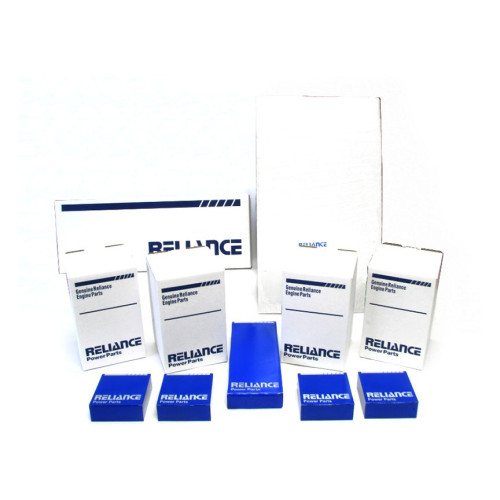

Kit Contents: (1) Head Gasket Set Part#F361347 ;(1) Oil Pan Gasket Part#F361153 ;(1) Oil Pan Gasket Part#F361164 ;(4) Rod Bearings (4) Rod Bearings Select Rod Bearing Size Standard, 1.25" width Part # F261215 .010 / .25mm, 1.25" width Part # F261217 .020 / .50mm, 1.25" width Part # F261218 .030 / .75mm, 1.25" width Part # F261219 .040 / 1.00mm, 1.25" width Part # F261221 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # F261222 .010 / .25mm Part # F261224 .020 / .50mm Part # F261225 .030 / .75mm Part # F261226 .040 / 1.00mm Part # F261227 ;(4) Piston & Rings (4) Piston & Rings Select Bore Size Standard Part # F161268 .020 / .50mm Part # F161269 .030 / .75mm Part # F161271 .040 / 1.00mm Part # F161272 ;
OEM Reference: N/A
Kit Notes: 1.625" piston pin
Additional Details: None

Head Torque	Main Torque	Rod Torque
N/A	N/A	N/A

Intake Valve Lash	Exhaust Valve Lash
N/A	N/A

Ford New Holland FT110 Tractor Inframe Engine Kit (Diesel - 304 CID) - F73342117

Choose Your Main Bearing Size (Not all Sizes Are Available)

Choose your Rod Bearing Size (not all sizes available)

Qty
