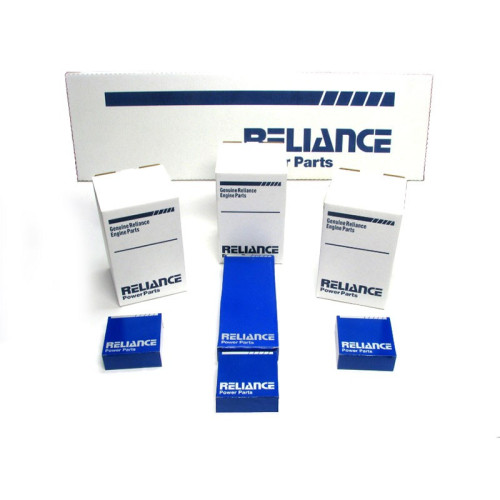

Ford New Holland 3930H Tractor Premium Overhaul Engine Kit
(See details below)
| Ford New Holland- 201, Diesel, BSD333, 09/90-08/92, 2.682\" comp. distance, 1.250\" rod bearings |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 201 | Diesel | 3 | 4.4007 | 4.4 |
| Rod Journal | Main Journal |
| 2.7496-2.7504 | 3.3714-3.3722 |
| Engine Notes: BSD333 |
Kit Contents: (12) Valve Keeper Part#NT20077 ;(3) Exhaust Valve Part#F461111 ;(3) Intake Valve Part#F461124 ;(6) Valve Spring Part#F461147 ;(4) Camshaft Bearing Part#FC5NE6261B ;(3) Piston Pin Bushing Part#F261161 ;(1) Head Gasket Set Part#F361143 ;(1) Conversion Gasket Set Part#F361142 ;(3) Rod Bearings (3) Rod Bearings Select Rod Bearing Size Standard, 1.25" width Part # F261215 .010 / .25mm, 1.25" width Part # F261217 .020 / .50mm, 1.25" width Part # F261218 .030 / .75mm, 1.25" width Part # F261219 .040 / 1.00mm, 1.25" width Part # F261221 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # F261122 .010 / .25mm Part # F261124 .020 / .50mm Part # F261125 .030 / .75mm Part # F261126 .040 / 1.00mm Part # F261127 .050 / 1.25mm Part # F261128 ;(3) Piston & Rings (3) Piston & Rings Select Bore Size Standard Part # F161142 .020 / .50mm Part # F161143 .030 / .75mm Part # F161144 .040 / 1.00mm Part # F161145 ;
OEM Reference: N/A
Kit Notes: 2.682" compression distance, 1.250" wide rod bearings
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| 1/2" bolts: 90, 100, 110 ft/lbs, 9/16" bolts: 115, 140, 160 ft/lbs | 115-125 ft/lbs | 60-65 ft/lbs |
| Intake Valve Lash | Exhaust Valve Lash |
| 014-.016" hot | 017-.021" hot (.432-.533 mm) |
Ford New Holland 3930H Tractor Premium Overhaul Engine Kit (Diesel - 201 CID) - RP967183
- Brand Category: Ford | New Holland
- Product Code: RP967183[RP967183]-3930H
- $826.65
-
$781.18
