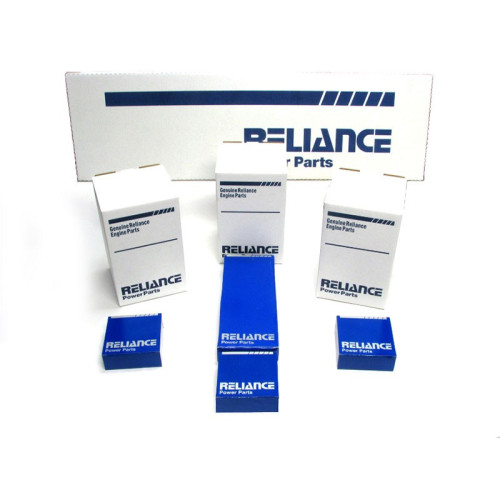

Ford New Holland 2300 Tractor Premium Overhaul Engine Kit
(See details below)
| Ford New Holland- 158, Diesel, BSD326, 01/65-12/74, 2.9645\" comp. distance |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 158 | Diesel | 3 | 4.2007 | 3.801 |
| Rod Journal | Main Journal |
| 2.7496-2.7504 | 3.3713-3.3723 |
| Engine Notes: BSD326 |
Kit Contents: (3) Exhaust Valve Part#F461111 ;(3) Intake Valve Part#F461124 ;(4) Camshaft Bearing Part#FC5NE6261B ;(12) Valve Keeper Part#NT20077 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # F261122 .010 / .25mm Part # F261124 .020 / .50mm Part # F261125 .030 / .75mm Part # F261126 .040 / 1.00mm Part # F261127 .050 / 1.25mm Part # F261128 ;(3) Piston & Rings (3) Piston & Rings Select Bore Size Standard Part # F161111 .020 / .50mm Part # F161112 .030 / .75mm Part # F161113 .040 / 1.00mm Part # F161114 ;(3) Rod Bearings (3) Rod Bearings Select Rod Bearing Size Standard, 1.41" width Part # F261228 .010 / .25mm, 1.41" width Part # F261231 .020 / .50mm, 1.41" width Part # F261232A .030 / .75mm, 1.41" width Part # F261233A .040 / 1.00mm, 1.41" width Part # F261234A .050 / 1.25mm, 1.41" width Part # F261119 .060 / 1.50mm, 1.41" width Part # F261121 ;(3) Piston Pin Bushing Part#F261111 ;(1) Conversion Gasket Set Part#F361114 ;(1) Head Gasket Set Part#F361112 ;(6) Valve Spring Part#F461128 ;
OEM Reference: N/A
Kit Notes: 2.9645" compression distance
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| 60, 90, 115 ft/lbs | 115-125 ft/lbs | 60-65 ft/lbs |
| Intake Valve Lash | Exhaust Valve Lash |
| 014-.016" hot | 017-.019" hot (.432-.483 mm) |
Ford New Holland 2300 Tractor Premium Overhaul Engine Kit (Diesel - 158 CID) - RP967167
- Brand Category: Ford | New Holland
- Product Code: RP967167[RP967167]-2300
- $783.73
-
$740.62
