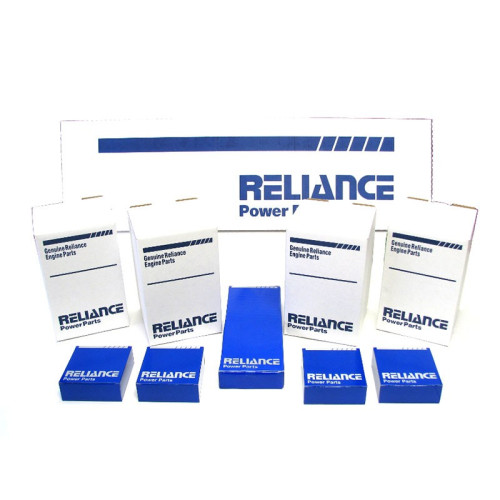

Deutz DX3.90 Tractor Overhaul Engine Kit
(See details below)
| Deutz- F4L913 |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 249 | Diesel | 4 | N/A | N/A |
| Rod Journal | Main Journal |
| N/A | N/A |
| Engine Notes: Naturally, Air cooled |
Kit Contents: (5) Main Bearing (5) Main Bearing Standard Part # D3362379 .010 / .25mm Part # D3362380 .020 / .50mm Part # D3362381 ;(4) Rod Bearings (4) Rod Bearings Select Rod Bearing Size Standard Part # D2137750 .010 / .25mm Part # D2137754 .020 / .50mm Part # D2137758 .030 / .75mm Part # D2137762 .040 / 1.00mm Part # D4231899 ;(4) Head Gasket Part#D4157654 ;(1) Rear Crankshaft Seal Part#D4230392 ;(1) Front Crankshaft Seal Part#D4152348 ;(4) Cylinder Kit Part#D2928137 ;(1) Overhaul Gasket Set w/o Crank Seals Part#D2910183 ;(1) Thrust Washer Set Part#D2230181 ;(1) Thrust Washer Set Part#D2230171 ;
OEM Reference: N/A
Kit Notes: N/A
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| 30 ft/lbs, +45 degrees, +45 degrees, +45 degrees, +30 degrees | 22 ft/lbs, +60 degrees, +45 degrees | 22 ft/lbs, +60 degrees, +30 degrees |
| Intake Valve Lash | Exhaust Valve Lash |
| 006" cold (.152 mm) | 006" cold (.152 mm) |
Deutz DX3.90 Tractor Overhaul Engine Kit (Diesel - 249 CID) - RP985189
- Brand Category: Deutz (Allis)
- Product Code: RP985189[985189]-DX3.90
- $1,680.00
-
$1,587.60
