Deutz 9630 Tractor Overhaul Engine Kit
(See details below)
| Deutz- BF6L913 |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 374 | Diesel | 6 | N/A | N/A |
| Rod Journal | Main Journal |
| N/A | N/A |
| Engine Notes: Turbocharged, air cooled |

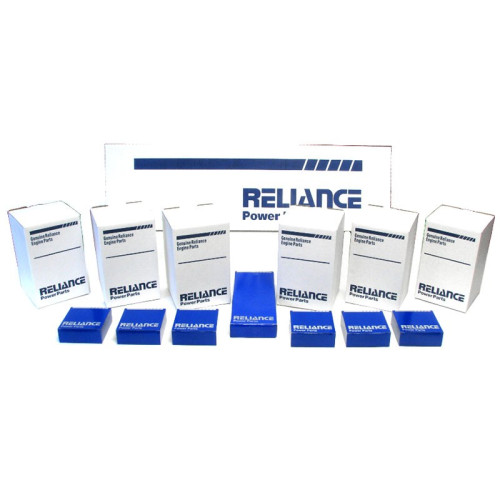

Kit Contents: (6) Head Gasket Part#D4157654 ;(6) Rod Bearings (6) Rod Bearings Select Rod Bearing Size Standard Part # D2235183 .010 / .25mm Part # D2235204 ;(7) Main Bearing (7) Main Bearing Standard Part # D2235185 .010 / .25mm Part # D2235189 ;(1) Thrust Washer Set Part#D2230196 ;(1) Thrust Washer Set Part#D2230201 ;(1) Front Crankshaft Seal Part#D4152348 ;(6) Cylinder Kit Part#D2928714 ;(1) Full Gasket Set-with crank seals Part#D2929657 ;(1) Rear Crankshaft Seal Part#D4230392 ;
OEM Reference: N/A
Kit Notes: N/A
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| 30 ft/lbs, +45 degrees, +45 degrees, +45 degrees, +30 degrees | 22 ft/lbs, +60 degrees, +45 degrees | 22 ft/lbs, +60 degrees, +30 degrees |
| Intake Valve Lash | Exhaust Valve Lash |
| 006" cold (.152 mm) | 006" cold (.152 mm) |
Deutz 9630 Tractor Overhaul Engine Kit (Diesel - 374 CID) - RP985197
- Brand Category: Deutz (Allis)
- Product Code: RP985197[985197]-9630
- $2,380.00
-
$2,249.10
