  • Case | Case-IH JX75 Tractor Mechanical Suspension, Narrow Base

Case | Case-IH JX75 Seats | F Series Seat Suspensions | SSM100


  • Mechanical Suspension
  • Suspension Stroke 4" / 100mm
  • Slide Track Fore & Aft Travel Is 6" / 150mm
  • Weight Adjustment 110 - 330 lbs. / 50 - 150kg
  • All dimensions & specifications must be checked before ordering. This is a universal suspension meant for a flat mounting surface. Some applications may require drilling & bracket fabrication to mount.

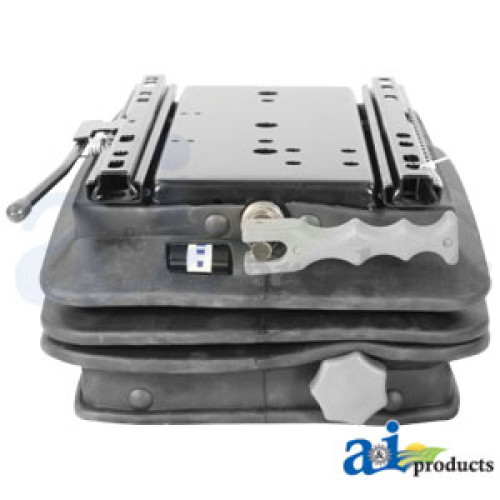

  • Black long lever is for the slide track
  • Gray handle lever in the middle is for adjusting the weight
  • Gray star shaped knob is to adjust suspension up or down
  • The following seats can be added to this suspension. F20ST105, F20ST135, F20ST145, F20ST155, TMS111BL, TMS111YL, TMS111GR, TMS444BL, TMS444YL, TMS444GR, LGS100BL, LGS100YL, T500BL, T500GY, FLS122BL, FLS322BL, T110BL, T110YL, T122BL
  • Replaces: 8079

    • Case | Case-IH JX75 Tractor Mechanical Suspension, Narrow Base

    • $288.94

    • $284.61
