Case (Case IH) C60 Tractor Major Overhaul Engine Kit
(Click here to view all Engine Parts for your Case (Case IH) C60 Tractor)
| Perkins- 903.27T, sleeveless block, keystone top ring |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 165 | Diesel | 3 | 3.741 | 5 |
| Rod Journal | Main Journal |
| 2.2484-2.2492 | 2.7485-2.7493 |
| Engine Notes: Turbocharged |

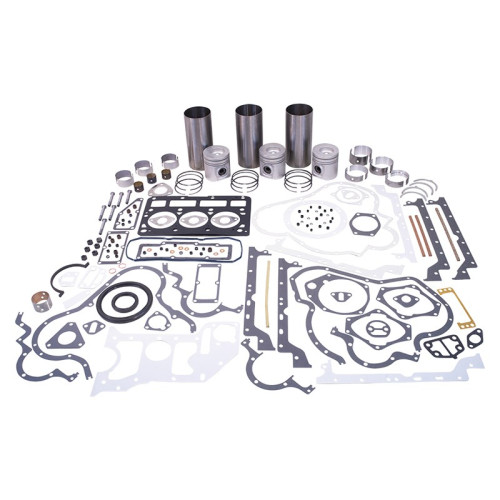

Kit Contents: (1) Fuel Line Seal Kit Part#RP371277 ;(1) Conversion Gasket Set Part#RP371284 ;(3) Cylinder Kit Part#RP171463 ;(6) Connecting Rod Bolt Nut Part#M33221327 ;(1) Rod Bearings (1) Rod Bearings Select Rod Bearing Size Standard Part # MU5ME0005 .010 / .25mm Part # MU5ME0005A .020 / .50mm Part # MU5ME0005B .030 / .75mm Part # MU5ME0005C ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # MU5MB0014 .010 / .25mm Part # MU5MB0014A ;(1) Head Gasket Set Part#MU5LT0217 ;(1) Thrust Washer Set Part#MU5TW0003 ;(6) Connecting Rod Bolt Part#M0095250 ;(3) Piston Pin Bushing Part#M31134151 ;(1) Camshaft Bearing Part#M3112E015 ;(1) Front Crankshaft Seal Part#M2415344 ;(1) Rear Crankshaft Seal Part#M2418F475 ;
OEM Reference: N/A
Kit Notes: sleeveless block, keystone top ring, 3 ring piston, re-entrant bowl
Additional Details: high grade X pistons
| Head Torque | Main Torque | Rod Torque |
| bolts 1-8: 52, 52 ft/lbs, +60 degrees, +60 degrees, bolts 9-12: 37, 37 ft/lbs, +60 degrees | 152.5 ft/lbs | 77.5 ft/lbs |
| Intake Valve Lash | Exhaust Valve Lash |
| 008 hot & cold (.203mm) | 018" hot & cold (.450 mm) |
Case (Case IH) C60 Tractor Major Overhaul Engine Kit (Diesel - 165 CID) - RP976238
- Brand Category: Case | Case-IH
- Product Code: RP976238[976238]-C60
- $1,757.00
-
$1,660.37
