Case (Case IH) 800 Tractor Inframe Engine Kit
(Click here to view all Engine Parts for your Case (Case IH) 800 Tractor)
| Case (Case IH)- A267D, Diesel, See Equipment Application, 1.358\" piston pin |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 267 | Diesel | 4 | 4.125 | 5 |
| Rod Journal | Main Journal |
| 2.7480-2.7490 | 2.9980-2.9990 |
| Engine Notes: N/A |

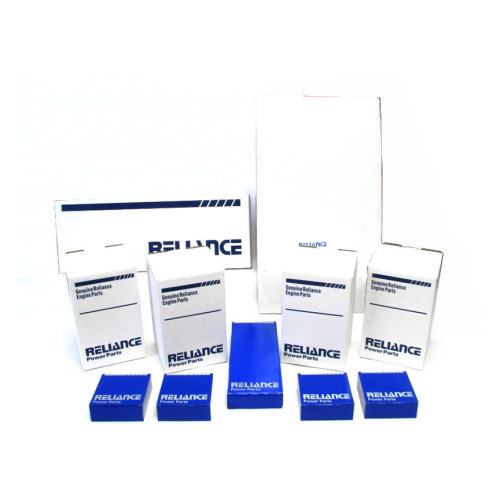

Kit Contents: (1) Oil Pan Gasket Part#5A189510 ;(1) Head Gasket Set Part#5A189506 ;(1) Thrust Washer Set Part#5A62572S ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # RP922 .010 / .25mm Part # RP92210 .020 / .50mm Part # RP92220 .030 / .75mm Part # RP92230 ;(4) Rod Bearings (4) Rod Bearings Select Rod Bearing Size Standard Part # 5A43173 .002 Part # 5A43174 .010 / .25mm Part # 5A43175 .020 / .50mm Part # 5A43176 .030 / .75mm Part # 5A43177 .040 / 1.00mm Part # RP221119 ;(4) Cylinder Kit Part#RP121175 ;
OEM Reference: N/A
Kit Notes: indirect injection, flat top piston, 1.358" piston pin, .156" thrust washers
Additional Details: 4.250" bore, heavy duty oil ring
| Head Torque | Main Torque | Rod Torque |
| 100 ft/lbs stud nuts, 145-150 ft/lbs bolts | 145-155 ft/lbs | 95-105 ft/lbs |
| Intake Valve Lash | Exhaust Valve Lash |
| 025" cold (.635 mm) | 025" cold (.635 mm) |
Case (Case IH) 800 Tractor Inframe Engine Kit (Diesel - 267 CID) - RP924184
- Brand Category: Case | Case-IH
- Product Code: RP924184[924184]-800
- $1,498.00
-
$1,415.61
