Case (Case IH) 800 Log Skidder Overhaul Engine Kit

Case (Case IH)- 336BDT, 5.192\" fire dam, 1.800\" piston pin, keystone comp. rings

Engine CID	Fuel Type	Cylinders	Bore	Stroke
336	Diesel	4	4.625	5

Rod Journal	Main Journal
2.9980-2.9990	3.4980-3.4990

Engine Notes: 5.192" fire dam

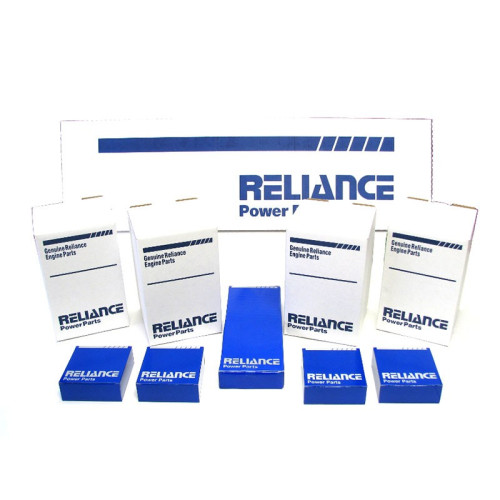

Kit Contents: (4) Rod Bearings (4) Rod Bearings Select Rod Bearing Size Standard Part # 5A41758 .010 / .25mm Part # 5A41900 .020 / .50mm Part # 5A41901 .030 / .75mm Part # 5A41902 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # RP920 .010 / .25mm Part # RP92010 .020 / .50mm Part # RP92020 .030 / .75mm Part # RP92030 ;(1) Conversion Gasket Set Part#5A189538 ;(4) Cylinder Kit Part#5A152177 ;(1) Head Gasket Set Part#5A46367 ;
OEM Reference: N/A
Kit Notes: 5.430" counterbore, 5.415" liner flange OD, 1.800" piston pin, keystone compression rings
Additional Details: None

Head Torque	Main Torque	Rod Torque
70, 140, 200-210 ft/lbs	200-210 ft/lbs bolts with washer, 145-155 ft/lbs without washer	95-105 ft/lbs

Intake Valve Lash	Exhaust Valve Lash
015" cold (.381 mm)	025" cold (.635 mm)

Case (Case IH) 800 Log Skidder Overhaul Engine Kit (Diesel - 336 CID) - RP925159

Choose Your Main Bearing Size (Not all Sizes Are Available)

Choose your Rod Bearing Size (not all sizes available)

Qty
