Case (Case IH) 7150 Tractor Inframe Engine Kit
(Click here to view all Engine Parts for your Case (Case IH) 7150 Tractor)
| Cummins- 6CTA8.3, 5.235\" flange, marked 3164, 4368, 8750, 9565, 9930; CDC Thru 44706125, Brazil Thru 30417119, DEP Thru 21123435 |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 505 | Diesel | 6 | 4.488 | 5.315 |
| Rod Journal | Main Journal |
| 2.9916-2.9926 | 3.8568-3.8588 |
| Engine Notes: Turbocharged, Aftercooled (Early) |

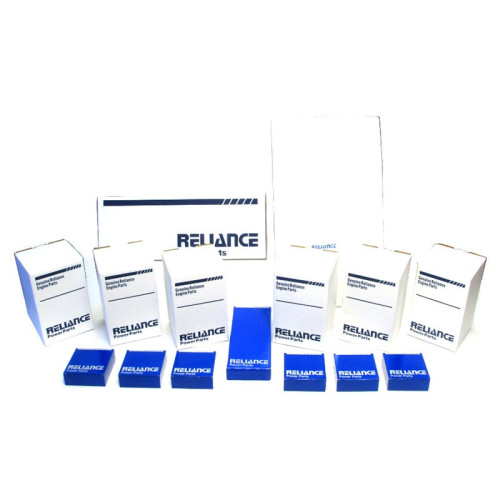

Kit Contents: (6) Cylinder Kit Part#K3802401 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # K3945917 .010 / .25mm Part # K3945918 .020 / .50mm Part # K3945919 .030 / .75mm Part # K3945920 .040 / 1.00mm Part # K3945921 ;(6) Rod Bearings (6) Rod Bearings Select Rod Bearing Size Standard Part # K3901430 .010 / .25mm Part # K3901431 .020 / .50mm Part # K3901432 .030 / .75mm Part # K3901433 .040 / 1.00mm Part # K3901434 ;(1) Head Gasket Set Part#K4025271 ;(1) Oil Pan Gasket Part#K3938160 ;
OEM Reference: A78013, A77882
Kit Notes: 5.235" liner flange diameter, piston marked 3164, 4368, 8750, 9565, 9930
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| before 91': 27, 110, 148 ft/lbs, 91' & up: all bolts 52 ft/lbs, long bolts 105 ft/lbs, all bolts +90 degrees | 37, 88, 129 ft/lbs | 30, 66, 88 ft/lbs |
| Intake Valve Lash | Exhaust Valve Lash |
| 012" cold (.305 mm) | 024" cold (.610 mm) |
Case (Case IH) 7150 Tractor Inframe Engine Kit (Diesel - 505 CID) - A78013, A77882 | RP1072
- Brand Category: Case | Case-IH
- Product Code: RP1072[934121]-7150
- $1,159.94
-
$1,096.14
