Case | Case-IH 586E Cooling Systems | Radiators and Related Parts | 234876A1

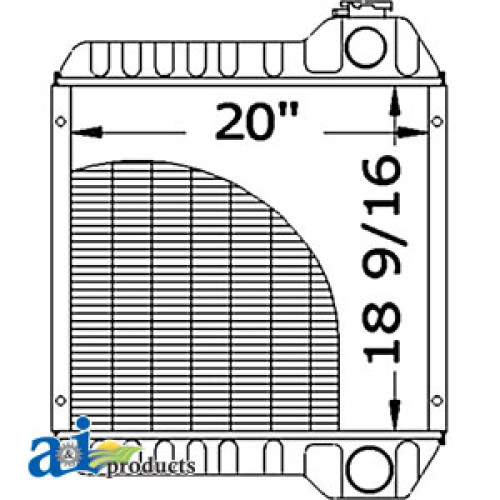

Our new radiator is designed and built to precise dimensional specifications to ensure an exact fit. Each radiator has a stamped brass tank, undergoes a rigorous quality inspection, and is 100% leak tested. This radiator has 7 fins per inch and 4 rows of tubes. It is 18.5625" tall and the core size is 20" wide. This radiator fits multiple Case-IH models.

Dim A (1): Core Size: 20.00" Wide

Dim B (2): 18.5625 High

Dim C (3): 4 Rows of Tubes

Dim D (4): 7 Fins per Inch
