Case (Case IH) 3210 Sprayer Inframe Engine Kit
(Click here to view all Engine Parts for your Case (Case IH) 3210 Sprayer)
| Cummins- 6BTA5.9L, piston marked 0187, 0188, 0189, machined rod |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 359 | Diesel | 6 | 4.0165 | 4.724 |
| Rod Journal | Main Journal |
| 2.7160-2.7170 | 3.2672-3.2682 |
| Engine Notes: Turbocharged, Aftercooled |

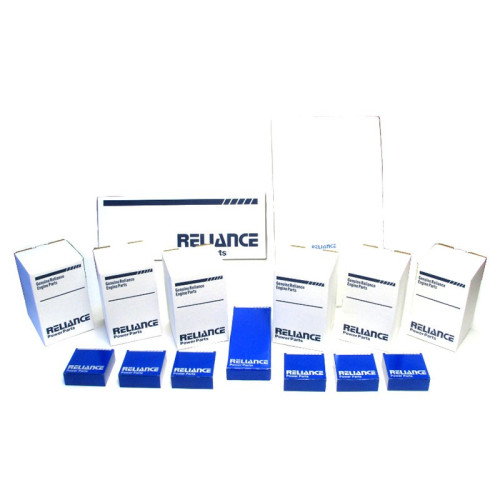

Kit Contents: (6) Rod Bearings (6) Rod Bearings Select Rod Bearing Size Standard, Machined Part # K3939859 .010 / .25mm, Machined Part # K4932375K .020 / .50mm, Machined Part # K4932376K .030 / .75mm, Machined Part # K3901173 .040 / 1.00mm, Machined Part # K3901174 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # K3802070 .010 / .25mm Part # K3802071 .020 / .50mm Part # K3802072 .030 / .75mm Part # K3802073 .040 / 1.00mm Part # K3802074 ;(6) Piston & Rings (6) Piston & Rings Select Bore Size Standard Part # K3802757K .020 / .50mm Part # K3802758K .040 / 1.00mm Part # K3802759K ;(1) Oil Pan Gasket Set Part#K3931346 ;(1) Head Gasket Set Part#K3804897 ;
OEM Reference: 87425544, A77924
Kit Notes: in-line pump, machined split rod, piston marked 0187, 0188, 0189
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| all bolts 66 ft/lbs, all bolts 66 ft/lbs again, longest bolts only tighten in sequence 89 ft/lbs, longest bolts only 89 ft/lbs again, all bolts +90 degrees | 37, 45, 66 ft/lbs, +90 degrees | 22, 44 ft/lbs, +60 degrees |
| Intake Valve Lash | Exhaust Valve Lash |
| 010" cold (.254 mm) | 025" cold (.635 mm) |
Case (Case IH) 3210 Sprayer Inframe Engine Kit (Diesel - 359 CID) - 87425544, A77924 | RP934163
- Brand Category: Case | Case-IH
- Product Code: RP934163[934163]-3210
- $1,005.72
-
$950.41
