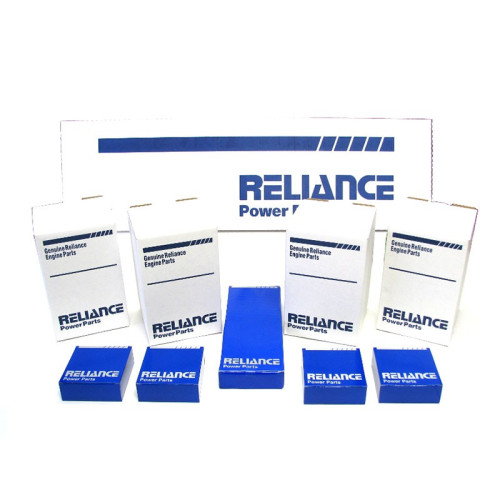

Case (Case IH) 310E Crawler Overhaul Engine Kit

Case (Case IH)- G188D, Diesel, G188D Early, Thru 2610996, 4.458\" liner flange OD

Engine CID	Fuel Type	Cylinders	Bore	Stroke
188	Diesel	4	3.8125	4.125

Rod Journal	Main Journal
2.0605-2.0615	2.8730-2.8740

Engine Notes: Thru 2610996

Kit Contents: (1) Overhaul Gasket Set Part#RP321229 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # RP928 .010 / .25mm Part # RP92810 .020 / .50mm Part # RP92820 .030 / .75mm Part # RP92830 ;(4) Rod Bearings (4) Rod Bearings Select Rod Bearing Size Standard Part # 5A46050 .002 Part # 5A46051 .010 / .25mm Part # 5A46052 .020 / .50mm Part # 5A46053 .030 / .75mm Part # 5A46054 ;(4) Cylinder Kit Part#5A36391 ;
OEM Reference: B93131
Kit Notes: narrow flange liners, 4.458" liner flange OD
Additional Details: None

Head Torque	Main Torque	Rod Torque
nuts 95-100 ft/lbs, bolts 110-115 ft/lbs	90-100 ft/lbs	45-50 ft/lbs

Intake Valve Lash	Exhaust Valve Lash
014" cold (.356 mm)	014" cold (.356 mm)

Case (Case IH) 310E Crawler Overhaul Engine Kit (Diesel - 188 CID) - B93131 | RP1186

Choose Your Main Bearing Size (Not all Sizes Are Available)

Choose your Rod Bearing Size (not all sizes available)

Qty
