Case (Case IH) 310B Tractor Inframe Engine Kit without Main Bearings

(See details below)

Case (Case IH)- G148, Gas, model years 1955-1960, 2.250\" main journal

Engine CID	Fuel Type	Cylinders	Bore	Stroke
148	Gas	4	3.375	4.125

Rod Journal	Main Journal
1.9365-1.9375	2.2490-2.2500

Engine Notes: N/A

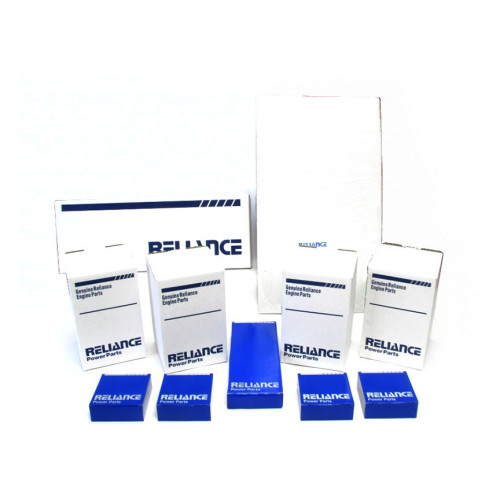

Kit Contents: (4) Cylinder Kit Part#5G11007 ;(1) Oil Pan Gasket Part#5A40710 ;(1) Head Gasket Set Part#5A189552 ;(4) Rod Bearings (4) Rod Bearings Select Rod Bearing Size Standard Part # RP221113 .010 / .25mm Part # RP221219 .020 / .50mm Part # RP221221 .030 / .75mm Part # RP221222 .040 / 1.00mm Part # RP221223 .060 / 1.50mm Part # RP221319
OEM Reference: N/A
Kit Notes: 2.250" main journal diameter
Additional Details: oil pan less ears

Head Torque	Main Torque	Rod Torque
60-65 ft/lbs	90-100 ft/lbs	45-50 ft/lbs

Intake Valve Lash	Exhaust Valve Lash
014" cold (.356 mm)	014" cold (.356 mm)

Case (Case IH) 310B Tractor Inframe Engine Kit w/out Main Bearings (Gas - 148 CID) - RP924124

Choose your Rod Bearing Size (not all sizes available)

Qty
