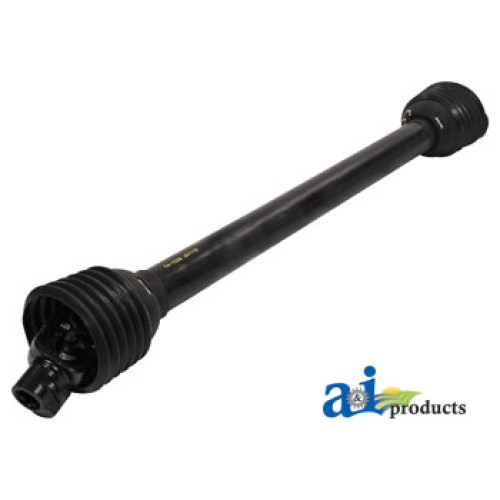

Bush Hog SQ60 Driveline (by application) | Driveline Assembly | 76733

New 100 series economy driveline. Driveline minimum C-to-C length is 41" (1035 mm), Maximum C-to-C length is 62" (1560 mm), Total collapsed length is 48" (1230 mm). Tractor end yoke has 6, 1-3/8" splines, Implement end yoke has 1-3/8" round bore with 1/2" pin hole. Driveline rated as category 3 (35 hp), size 4. Driveline has 6 ft. lift / 3-pt. hitch. Fits Bush Hog rotary cutters.

It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

Dim L (12): 1230 mm/ 48"

C to C: 1035 mm/ 41"

Implement: 1 3/8" RB 1/2" PH

Replaces: 88642, 92950

Tractor: 1 3/8" -6
