Allis Chalmers MH3 Combine Overhaul Engine Kit

Allis Chalmers- 670T / 670I / 670H, Diesel, 1.750\" piston pin

Engine CID	Fuel Type	Cylinders	Bore	Stroke
426	Diesel	6	4.25	5

Rod Journal	Main Journal
2.7475-2.7485	3.2465-3.2480

Engine Notes: N/A

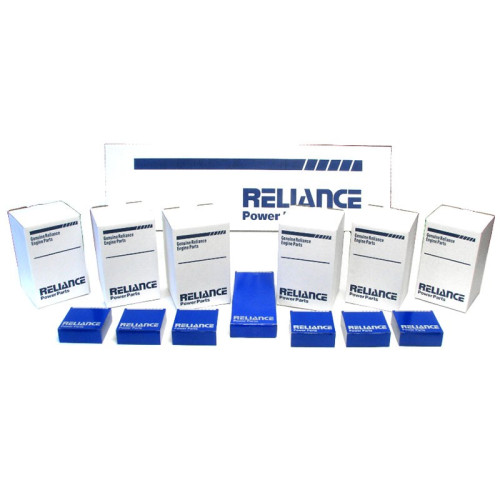

Kit Contents: (1) Conversion Gasket Set Part#RP311118 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # RP211129 .010 / .25mm Part # RP211131 .020 / .50mm Part # RP211132 .030 / .75mm Part # RP211133 ;(6) Rod Bearings (6) Rod Bearings Select Rod Bearing Size Standard Part # 44036261 .010 / .25mm Part # 44036426 .020 / .50mm Part # 44036427 .030 / .75mm Part # 44036428 ;(6) Cylinder Kit Part#474062633 ;(1) Head Gasket Set Part#474036897 ;(6) Cylinder Block Plug Part#470929248 ;
OEM Reference: N/A
Kit Notes: 1.750" piston pin diameter, Roosa Master or Ambac 100 injection pump
Additional Details: None

Head Torque	Main Torque	Rod Torque
110, 165 ft/lbs, retorque hot	170-190 ft/lbs	80-85 ft/lbs 6-point bolts, 68 ft/lbs 12-point bolts

Intake Valve Lash	Exhaust Valve Lash
018" cold, .015" hot	018" cold, .015" hot

Allis Chalmers MH3 Combine Overhaul Engine Kit (Diesel - 426 CID) - RP915127

Choose Your Main Bearing Size (Not all Sizes Are Available)

Choose your Rod Bearing Size (not all sizes available)

Qty
