Description

Yale GDP080 Forklift Overhaul Engine Kit

(Click here to view all Engine Parts for your Yale GDP080 Forklift)

Perkins- G4.203, Gas / LPG

Engine CID	Fuel Type	Cylinders	Bore	Stroke
203	Gas / LPG	4	3.602	5

Rod Journal	Main Journal
2.2485-2.2490	2.7485-2.7490

Engine Notes: N/A

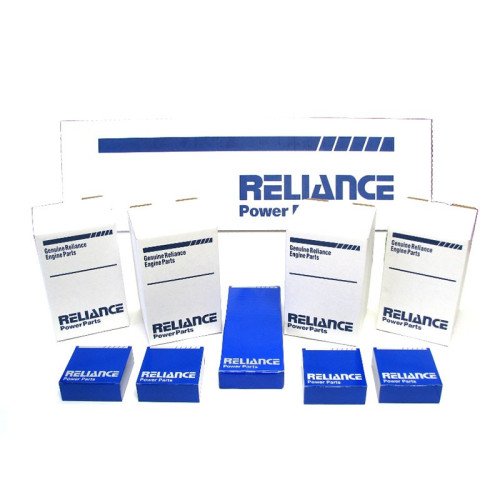

Kit Contents: (1) Conversion Gasket Set Part#MU5LB1115 ;(1) Head Gasket Set Part#MU5LT0101 ;(1) Thrust Washer Set Part#MU5TW0003 ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # M85035 .010 / .25mm Part # M85035A .020 / .50mm Part # M85035B .030 / .75mm Part # M85035C ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # M68082 .010 / .25mm Part # M68082A .020 / .50mm Part # M68082B .030 / .75mm Part # M68082C .040 / 1.00mm Part # M68082D .050 / 1.25mm Part # M68082E .060 / 1.50mm Part # M68082F ;(4) Cylinder Kit Part#RP171124 ;(2) Rear Crank Seal-(1 half piece) Part#M36883119 ;(1) Front Crankshaft Seal Part#M2415344 ;
OEM Reference: N/A
Kit Notes: N/A
Additional Details: None

Head Torque	Main Torque	Rod Torque
60 ft/lbs nuts only, 70 ft/lbs studs & nuts	115 ft/lbs	45 ft/lbs

Intake Valve Lash	Exhaust Valve Lash
012" cold (.305 mm)	015" cold (.381 mm)

Yale GDP080 Forklift Overhaul Engine Kit (Gas | LPG - 203 CID) - RP975211

Brand Category: Yale
Product Code: RP975211[975211]-GDP080
