White 6195 Tractor Overhaul Engine Kit
(Click here to view all Engine Parts for your White 6195 Tractor)
| Cummins- 6CTA8.3, 5.155\" flange, marked 3164, 8750, 9565, 9930; CDC 44706126-45636465, DEP 21123436-21301476, Brazil After 30417119 |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 505 | Diesel | 6 | 4.488 | 5.315 |
| Rod Journal | Main Journal |
| 2.9916-2.9926 | 3.8568-3.8588 |
| Engine Notes: Turbocharged, Aftercooled (Mid) |

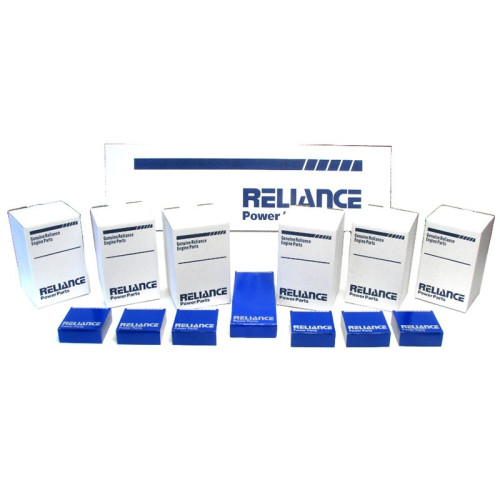

Kit Contents: (6) Cylinder Kit Part#K3802404 ;(6) Piston Pin Bushing Part#K3970951 ;(1) Head Gasket Set Part#K4025271 ;(6) Rod Bearings (6) Rod Bearings Select Rod Bearing Size Standard Part # K3901430 .010 / .25mm Part # K3901431 .020 / .50mm Part # K3901432 .030 / .75mm Part # K3901433 .040 / 1.00mm Part # K3901434 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # K3945917 .010 / .25mm Part # K3945918 .020 / .50mm Part # K3945919 .030 / .75mm Part # K3945920 .040 / 1.00mm Part # K3945921 ;(1) Conversion Gasket Set Part#K3800558 ;
OEM Reference: N/A
Kit Notes: 5.155" liner flange diameter, piston marked 3164, 8750, 9565, 9930
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| before 91': 27, 110, 148 ft/lbs, 91' & up: all bolts 52 ft/lbs, long bolts 105 ft/lbs, all bolts +90 degrees | 37, 88, 129 ft/lbs | 30, 66, 88 ft/lbs |
| Intake Valve Lash | Exhaust Valve Lash |
| 012" cold (.305 mm) | 024" cold (.610 mm) |
White 6195 Tractor Overhaul Engine Kit (Diesel - 505 CID) - RP1086
- Brand Category: White | AGCO White
- Product Code: RP1086[935123]-6195
- $1,292.43
-
$1,221.35
