McCormick C70 Tractor Inframe Engine Kit
(Click here to view all Engine Parts for your McCormick C70 Tractor)
| Perkins- 1004-42 / N4.421, After U284277J, belt water pump, balancer, fractured rod |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 258 | Diesel | 4 | 4.056 | 5 |
| Rod Journal | Main Journal |
| 2.4988-2.4996 | 2.9984-2.9992 |
| Engine Notes: Naturally Aspirated, After U284277J |

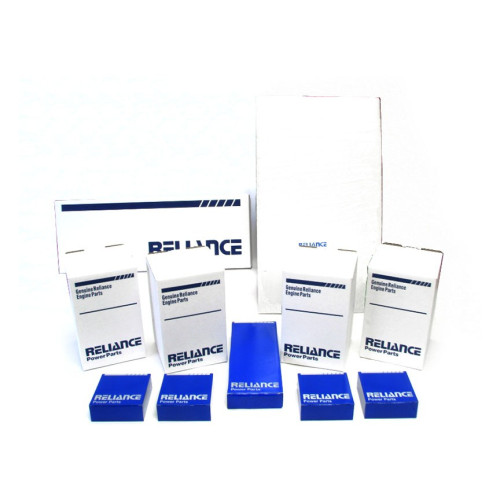

Kit Contents: (1) Head Gasket Set Part#MU5LT0317 ;(4) Piston Part#MU5LP0058 ;(1) Rod Bearing Set Part#MU5ME0013 ;(1) Thrust Washer Set Part#MU5TW0002 ;(1) Main Bearing Set Part#M81558 ;(4) Piston Ring Set Part#M4181A045 ;(1) Oil Pan Gasket Part#M3681K005 ;(1) Oil Pan Gasket Part#M3681K003 ;
OEM Reference: N/A
Kit Notes: belt drive water pump, balancer, fractured rods without tang notch
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| 80 ft/lbs, 80 ft/lbs short bolts +150 degrees, medium bolts +180 degrees, long bolts +210 degrees | 196 ft/lbs | 92 ft/lbs nuts, 114 ft/lbs bolts |
| Intake Valve Lash | Exhaust Valve Lash |
| 008" (.203 mm) | 018" (.450 mm) |
McCormick C70 Tractor Inframe Engine Kit (Diesel - 258 CID) - RP974435
- Brand Category: McCormick
- Product Code: RP974435[974435]-C70
- $867.20
-
$819.50
