Massey Ferguson 135 Tractor Premium Overhaul Engine Kit

Perkins- AD3.152, Direct Injection, Thru UA391044D, cast liner, .150\" flange, 45 degree valve

Engine CID	Fuel Type	Cylinders	Bore	Stroke
152	Diesel	3	3.602	5

Rod Journal	Main Journal
2.2484-2.2492	2.7485-2.7493

Engine Notes: Direct Injection Thru UA391044D

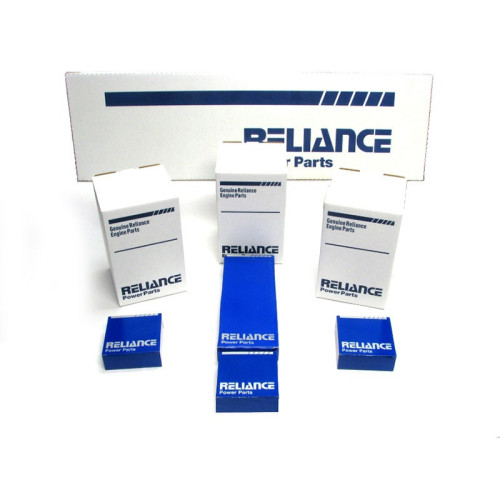

Kit Contents: (3) Piston Pin Bushing Part#M31134151 ;(1) Front Crankshaft Seal Part#M2415344 ;(6) Connecting Rod Bolt Part#M0095250 ;(1) Conversion Gasket Set Part#MU5LB1157 ;(1) Head Gasket Set Part#MU5LT0538 ;(1) Thrust Washer Set Part#MU5TW0003 ;(3) Cylinder Kit Part#MU5MK0034 ;(6) Connecting Rod Bolt Nut Part#M33221327 ;(2) Rear Crank Seal-(1 half piece) Part#M36883119 ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # M85036 .010 / .25mm Part # M85036A .020 / .50mm Part # M85036B .030 / .75mm Part # M85036C .040 / 1.00mm Part # M85036D .050 / 1.25mm Part # M85036E .060 / 1.50mm Part # M85036F ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # M68084 .010 / .25mm Part # M68084A .020 / .50mm Part # M68084B .030 / .75mm Part # M68084C .040 / 1.00mm Part # M68084D .050 / 1.25mm Part # M68084E .060 / 1.50mm Part # M68084F ;(12) Valve Keeper Part#M0230001 ;(6) Valve Spring Part#M0780006 ;(3) Exhaust Valve Part#M31431591 ;(3) Intake Valve Part#M31431281 ;(6) Valve Guide Part#M3316A031 ;(1) Fuel Line Seal Kit Part#RP371235 ;
OEM Reference: N/A
Kit Notes: cast liner, .150" flange, 45 degree valves, 5 ring piston, keyed crankshaft, rope seal, 18 studs
Additional Details: None

Head Torque	Main Torque	Rod Torque
60 ft/lbs nuts, 70 ft/lbs bolts	110-115 ft/lbs	70 ft/lbs self locking nut, 45 ft/lbs silver, 60 ft/lbs black
