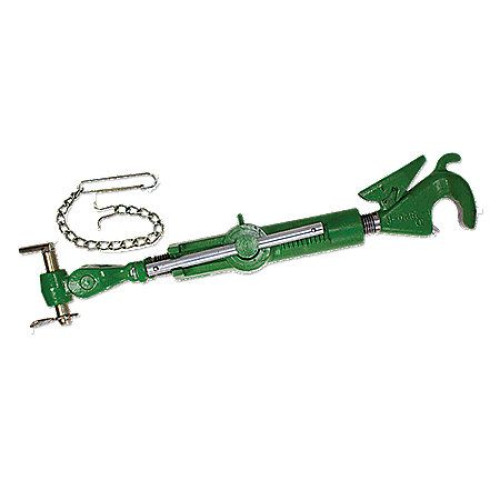

Name: John Deere Top Link (JDS117)
Brand: John Deere
SKU: JDS117(A18998)
Price: 258.33 USD
Availability: InStock

Description

Part Number: JDS117

Product Details: Top-Link w/ Hook End, Pin & Chain

Applications and Uses:
520, 530, 620, 630, 720, 730

Notes: Adjustable from 21-1/2" to 30" center of pin to center of hook opening. Uses .750" dia. pin in one end & 2" dia. ball in hook end.

Specifications:

OEM Replacement Part Numbers: AF2798R, AF2799R, AF2873R, AR21917R

John Deere Top Link (JDS117)

Brand Category: John Deere

Product Code: JDS117

$264.95

$258.33

Qty
