International O-6 Tractor Inframe Engine Kit
(Click here to view all Engine Parts for your International O-6 Tractor)
| International- C248, Gas, Early, 2.498\" rod journal, 1.312\" piston pin |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 248 | Gas | 4 | 3.875 | 5.25 |
| Rod Journal | Main Journal |
| N/A | N/A |
| Engine Notes: Early |

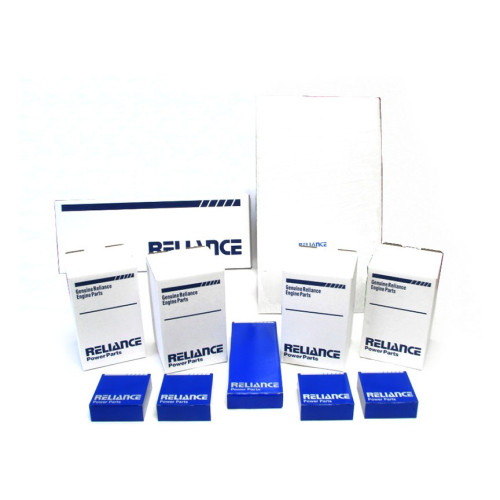

Kit Contents: (4) Cylinder Kit Part#7366975 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # 7367892 .002 Part # 7377977 .010 / .25mm Part # 7377978 .020 / .50mm Part # 7377981 .030 / .75mm Part # 7372130 ;(1) Head Gasket Set Part#7369959 ;(4) Rod Bearings (4) Rod Bearings Select Rod Bearing Size Standard Part # 745745DBX .002 Part # 7355269 .010 / .25mm Part # 745743DBX .020 / .50mm Part # 745744DBX .030 / .75mm Part # 745746DBX .040 / 1.00mm Part # RP241314 ;(1) Oil Pan Gasket Part#746109DA ;
OEM Reference: N/A
Kit Notes: 2.498" std rod journal, 1.312" piston pin, 4.125" parent bore in block
Additional Details: flat top piston
| Head Torque | Main Torque | Rod Torque |
| 110 ft/lbs | 100 ft/lbs | 53 ft/lbs |
| Intake Valve Lash | Exhaust Valve Lash |
| 017" hot (.432 mm) | 017" hot (.432 mm) |
International O-6 Tractor Inframe Engine Kit (Gas - 248 CID) - RP944152
- Brand Category: Farmall | International Havester
- Product Code: RP944152[944152]-O-6
- $1,229.48
-
$1,161.86
