International 275 Windrower Inframe Engine Kit
(Click here to view all Engine Parts for your International 275 Windrower)
| International- D206, Diesel, Early, engines built Thru 1979 |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 206 | Diesel | 4 | 3.875 | 4.375 |
| Rod Journal | Main Journal |
| 2.5185-2.5193 | 3.1484-3.1492 |
| Engine Notes: Neuss, Early |

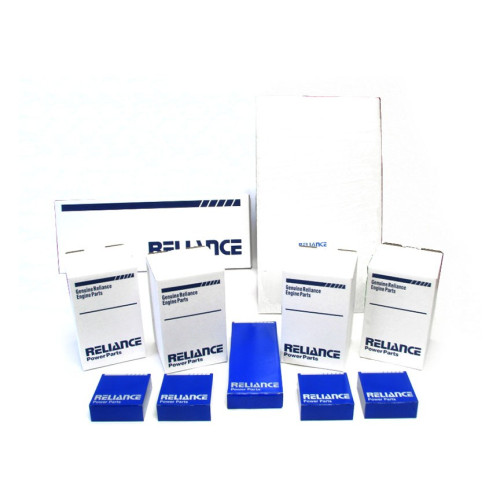

Kit Contents: (1) Head Gasket Set Part#73136799 ;(4) Cylinder Kit Part#73228771 ;(1) Oil Pan Gasket Part#73055161 ;(4) Rod Bearings (4) Rod Bearings Select Rod Bearing Size Standard L.H. tang Part # 73144688 Standard R.H. tang Part # 73055351 .010 / .25mm L.H. tang Part # 73144876 .010 / .25mm R.H. tang Part # 73056834 .020 / .50mm L.H. tang Part # 73144881 .020 / .50mm R.H. tang Part # 73056879 .030 / .75mm R.H. tang Part # 73055781 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # RP918 .010 / .25mm Part # RP91810 .020 / .50mm Part # RP91820 .030 / .75mm Part # RP91830 ;
OEM Reference: N/A
Kit Notes: engines built Thru 1979, 4.667-4.677" liner o-ring groove diameter, 5.0 mm liner o-ring
Additional Details: Dominator
| Head Torque | Main Torque | Rod Torque |
| 30, 60, 110 ft/lbs | 30, 60, 110 ft/lbs | 18.5 ft/lbs, +120 degrees |
| Intake Valve Lash | Exhaust Valve Lash |
| 012" hot (.305 mm) | 012" hot (.305 mm) |
International 275 Windrower Inframe Engine Kit (Diesel - 206 CID) - RP944166
- Brand Category: Farmall | International Havester
- Product Code: RP944166[944166]-275
- $960.00
-
$907.20
