Gradall 534B Telescopic Handler Overhaul Engine Kit

Perkins- T4.236, After U083371N, 3 ring piston, 1.5\" pin, flanged liners no fire dam, no balancer

Engine CID	Fuel Type	Cylinders	Bore	Stroke
236	Diesel	4	3.877	5

Rod Journal	Main Journal
2.4988-2.4996	2.9984-2.9992

Engine Notes: Turbocharged, After U083371N

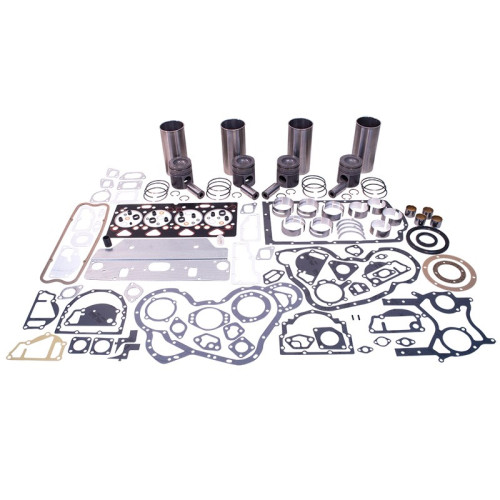

Kit Contents: (1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # MU5ME0006 .010 / .25mm Part # MU5ME0006A .020 / .50mm Part # MU5ME0006B .030 / .75mm Part # MU5ME0006C ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # M81558 .010 / .25mm Part # M81558A .020 / .50mm Part # M81558B .030 / .75mm Part # M81558C .040 / 1.00mm Part # M81558D .050 / 1.25mm Part # M81558E .060 / 1.50mm Part # M81558F ;(1) Head Gasket Set Part#MU5LT1006 ;(1) Conversion Gasket Set Part#MU5LB1158 ;(1) Thrust Washer Set Part#MU5TW0002 ;(4) Cylinder Kit Part#MU5MK0169 ;(1) Front Crankshaft Seal Part#M2418F437 ;(1) Rear Crankshaft Seal Part#M2418F475 ;(4) Piston Pin Bushing Part#M31134131 ;
OEM Reference: N/A
Kit Notes: 3 ring piston, 1.500" pin, 30 degree intake valve, flanged liners no fire dam, no balancer
Additional Details: with pin bushings

Head Torque	Main Torque	Rod Torque
100 ft/lbs, 88 ft/lbs flanged bolt	150 ft/lbs, after engine serial U82408, UA50507, UC19949, UE4404, US12129: 180 ft/lbs	70 ft/lbs silver, 90 ft/lbs black
