Description

Gehl 7810 Skid Loader Inframe Engine Kit

(Click here to view all Engine Parts for your Gehl 7810 Skid Loader)

Perkins- 1104C-44T / 1104C-E44T / 1104C-44TA, Industrial block, no balancer, LH auxiliary drive

Engine CID	Fuel Type	Cylinders	Bore	Stroke
269	Diesel	4	4.1343	5

Rod Journal	Main Journal
2.4988-2.4996	2.9984-2.9992

Engine Notes: Turbocharged / Aftercooled

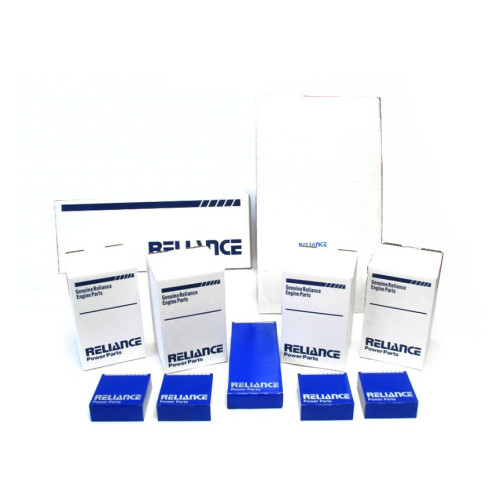

Kit Contents: (4) Piston & Rings (4) Piston & Rings Select Bore Size Standard Part # M4115P015 .020 / .50mm Part # M4115P016 .040 / 1.00mm Part # M4115P017 ;(1) Oil Pan Gasket Part#M3681K037 ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # MU5ME0013 .010 / .25mm Part # MU5ME0013A .020 / .50mm Part # MU5ME0013B ;(1) Thrust Washer Set Part#MU5TW0002 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # MU5MB0018 .010 / .25mm Part # MU5MB0018A .020 / .50mm Part # MU5MB0018B ;(1) Head Gasket Set Part#MU5LT0357 ;
OEM Reference: N/A
Kit Notes: Industrial block, no balancer, keystone top ring, LH auxiliary drive
Additional Details: None

Head Torque	Main Torque	Rod Torque
37, 74 ft/lbs, +225 degrees short bolts & 270 degrees long bolts	180 ft/lbs	92 ft/lbs nuts, 114 ft/lbs bolts

Intake Valve Lash	Exhaust Valve Lash
N/A	N/A

Gehl 7810 Skid Loader Inframe Engine Kit (Diesel - 269 CID) - RP974456

Brand Category: Gehl
Product Code: RP974456[974456]-7810
