Ford New Holland 655E Tractor Inframe Engine Kit

Ford New Holland- 304, 5.0L Natural Emission, 11/97 \u0026 After, 1.500\" piston pin

Engine CID	Fuel Type	Cylinders	Bore	Stroke
304	Diesel	4	4.4007	5

Rod Journal	Main Journal
N/A	3.3713-3.3723

Engine Notes: 5.0L Naturally Aspirated (Emissionised)

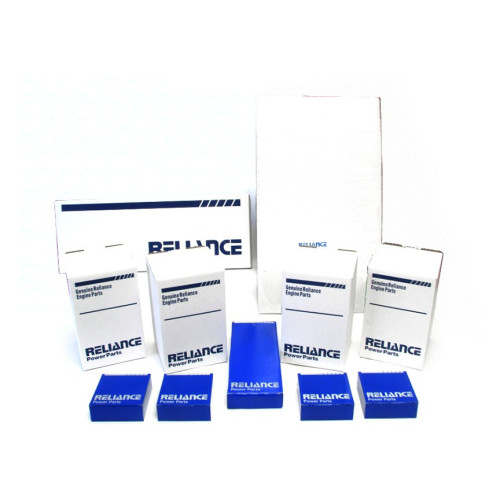

Kit Contents: (4) Piston & Rings (4) Piston & Rings Select Bore Size Standard Part # F161278 .040 / 1.00mm Part # F161282 Piston & Rings-.020 Part # 161279 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # F261222 .010 / .25mm Part # F261224 .020 / .50mm Part # F261225 .030 / .75mm Part # F261226 .040 / 1.00mm Part # F261227 ;(4) Rod Bearings (4) Rod Bearings Select Rod Bearing Size Standard, 1.25" width Part # F261215 .010 / .25mm, 1.25" width Part # F261217 .020 / .50mm, 1.25" width Part # F261218 .030 / .75mm, 1.25" width Part # F261219 .040 / 1.00mm, 1.25" width Part # F261221 ;(1) Head Gasket Set Part#F361347 ;(1) Oil Pan Gasket Part#F361154 ;
OEM Reference: N/A
Kit Notes: 1.500" piston pin
Additional Details: None

Head Torque	Main Torque	Rod Torque
160 ft/lbs	145 ft/lbs	110 ft/lbs

Intake Valve Lash	Exhaust Valve Lash
014-.018" cold	017-.021" cold (.432-.533 mm)

Ford New Holland 655E Tractor Inframe Engine Kit (Diesel - 304 CID) - F73342126

Choose Your Main Bearing Size (Not all Sizes Are Available)

Choose your Rod Bearing Size (not all sizes available)

Qty
