Case (Case IH) W24B Wheel Loader Overhaul Engine Kit
(Click here to view all Engine Parts for your Case (Case IH) W24B Wheel Loader)
| Case (Case IH)- 504BD, 5.094\" fire dam, 1.800\" piston pin, keystone top ring |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 504 | Diesel | 6 | 4.625 | 5 |
| Rod Journal | Main Journal |
| 2.9980-2.9990 | 3.4980-3.4990 |
| Engine Notes: 5.094" fire dam |
Kit Contents: (6) Rod Bearings (6) Rod Bearings Select Rod Bearing Size Standard Part # 5A41758 .010 / .25mm Part # 5A41900 .020 / .50mm Part # 5A41901 .030 / .75mm Part # 5A41902 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # RP921 .010 / .25mm Part # RP92110 .020 / .50mm Part # RP92120 .030 / .75mm Part # RP92130 ;(6) Cylinder Kit Part#5A460251 ;(1) Conversion Gasket Set Part#5A189538 ;(1) Head Gasket Set Part#5A189545 ;
OEM Reference: N/A
Kit Notes: 5.387" counterbore, 5.374" liner flange OD, 1.800" piston pin, keystone top ring
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| 70, 140, 210 ft/lbs | 145-155 ft/lbs without washers, 200-210 ft/lbs with washers | 95-105 ft/lbs |
| Intake Valve Lash | Exhaust Valve Lash |
| 015" hot (.381 mm) | 025" hot (.635 mm) |

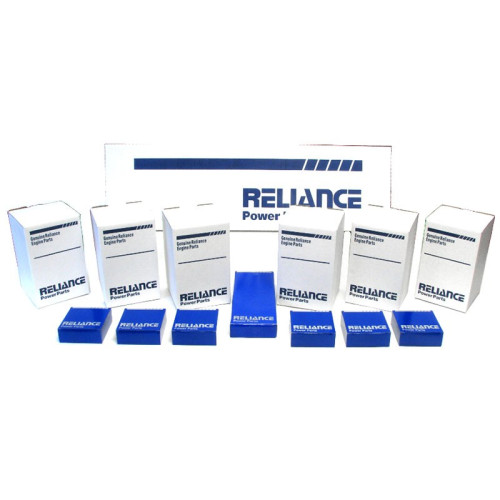

Case (Case IH) W24B Wheel Loader Overhaul Engine Kit (Diesel - 504 CID) - RP925257
- Brand Category: Case | Case-IH
- Product Code: RP925257[925257]-W24B
- $2,716.00
-
$2,566.62
