Case (Case IH) MX285 Tractor Overhaul Engine Kit
(Click here to view all Engine Parts for your Case (Case IH) MX285 Tractor)
| Cummins- QSC 8.3L, CAPS Injection (24 Valve), piston marked 3367 |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 505 | Diesel | 6 | 4.488 | 5.315 |
| Rod Journal | Main Journal |
| 2.9916-2.9926 | 3.8568-3.8588 |
| Engine Notes: Turbocharged, Aftercooled, CAPS Injection (24 Valve) |

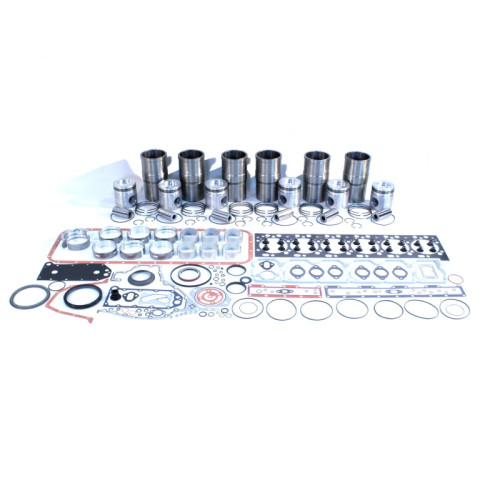

Kit Contents: (6) Rod Bearings (6) Rod Bearings Select Rod Bearing Size Standard Part # K3901430 .010 / .25mm Part # K3901431 .020 / .50mm Part # K3901432 .030 / .75mm Part # K3901433 .040 / 1.00mm Part # K3901434 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # K3945917 .010 / .25mm Part # K3945918 .020 / .50mm Part # K3945919 .030 / .75mm Part # K3945920 .040 / 1.00mm Part # K3945921 ;(1) Head Gasket Set Part#K4089958 ;(1) Conversion Gasket Set Part#K3800343 ;(6) Cylinder Kit Part#K3800321 ;
OEM Reference: N/A
Kit Notes: piston marked 3367
Additional Details: None
| Head Torque | Main Torque | Rod Torque |
| 108, 108 ft/lbs, +90 degrees | 37, 70 ft/lbs, +60 degrees | 26, 52 ft/lbs, +60 degrees |
| Intake Valve Lash | Exhaust Valve Lash |
| 006-.022" | 015-.032" (.381-.813 mm) |
Case (Case IH) MX285 Tractor Overhaul Engine Kit (Diesel - 505 CID) - RP935155
- Brand Category: Case | Case-IH
- Product Code: RP935155[935155]-MX285
- $2,058.00
-
$1,944.81
