Description

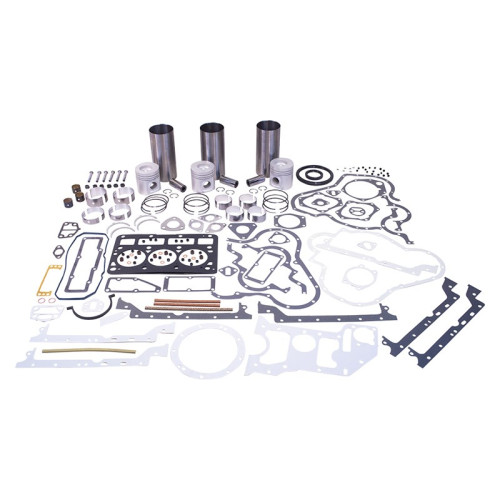

Case (Case IH) C50 Tractor Major Overhaul Engine Kit

(Click here to view all Engine Parts for your Case (Case IH) C50 Tractor)

Perkins- 903.27, See Build List, sleeveless block, rectangular top ring

Engine CID	Fuel Type	Cylinders	Bore	Stroke
165	Diesel	3	3.741	5

Rod Journal	Main Journal
2.2484-2.2492	2.7485-2.7493

Engine Notes: Naturally Aspirated

Kit Contents: (1) Head Gasket Set Part#MU5LT0339 ;(1) Main Bearing Set Part#MU5MB0014 ;(1) Thrust Washer Set Part#MU5TW0003 ;(6) Connecting Rod Bolt Part#M0095250 ;(3) Piston Pin Bushing Part#M31134151 ;(1) Camshaft Bearing Part#M3112E015 ;(1) Front Crankshaft Seal Part#M2415344 ;(1) Rear Crankshaft Seal Part#M2418F475 ;(1) Rod Bearing Set (1) Rod Bearing Set Select Rod Bearing Size Standard Part # M85035 .010 / .25mm Part # M85035A .020 / .50mm Part # M85035B .030 / .75mm Part # M85035C ;(3) Cylinder Kit Part#RP171453 ;(1) Fuel Line Seal Kit Part#RP371277 ;(1) Conversion Gasket Set Part#RP371284 ;(6) Connecting Rod Bolt Nut Part#M33221327 ;
OEM Reference: N/A
Kit Notes: sleeveless block, rectangular top ring, 3 ring piston, re-entrant bowl
Additional Details: high grade X pistons

Head Torque	Main Torque	Rod Torque
bolts 1-8: 52, 52 ft/lbs, +60 degrees, +60 degrees, bolts 9-12: 37, 37 ft/lbs, +60 degrees	152.5 ft/lbs	77.5 ft/lbs

Intake Valve Lash	Exhaust Valve Lash
008 hot & cold (.203mm)	018" hot & cold (.450 mm)

Case (Case IH) C50 Tractor Major Overhaul Engine Kit (Diesel - 165 CID) - RP976234

Brand Category: Case | Case-IH
Product Code: RP976234[976234]-C50
