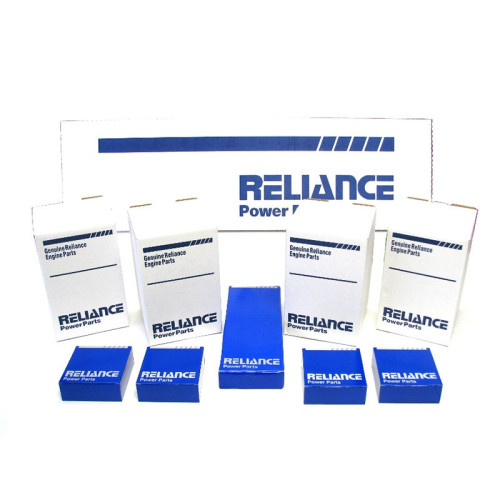

Case (Case IH) 550G Crawler Overhaul Engine Kit
(Click here to view all Engine Parts for your Case (Case IH) 550G Crawler)
| Cummins- 4B3.9L, piston marked 2514, 4975, 4976, 3581, 3582 |
| Engine CID | Fuel Type | Cylinders | Bore | Stroke |
| 239 | Diesel | 4 | 4.0165 | 4.724 |
| Rod Journal | Main Journal |
| 2.7160-2.7170 | 3.2672-3.2682 |
| Engine Notes: Natural Aspirated |
Kit Contents: (4) Rod Bearings (4) Rod Bearings Select Rod Bearing Size Standard, Machined Part # K3939859 .010 / .25mm, Machined Part # K4932375K .020 / .50mm, Machined Part # K4932376K .030 / .75mm, Machined Part # K3901173 .040 / 1.00mm, Machined Part # K3901174 ;(1) Main Bearing Set (1) Main Bearing Set Standard Part # K3802010 .010 / .25mm Part # K3802011 .020 / .50mm Part # K3802012 .030 / .75mm Part # K3802013 .040 / 1.00mm Part # K3802014 ;(4) Piston & Rings (4) Piston & Rings Select Bore Size Standard Part # K3804980K .020 / .50mm Part # K3804981K .040 / 1.00mm Part # K3804982K ;(1) Fuel Injection Pump Mounting D-Ring Part#K3935032 ;(1) Oil Pressure Relief Bypass O-Ring Part#K3929457 ;(1) Conversion Gasket Set Part#K3802375 ;(1) Head Gasket Set Part#K3804896 ;(4) Piston Pin Bushing Part#K4891178 ;
OEM Reference: N/A
Kit Notes: long pin, piston marked 2514, 4975, 4976, 3581, 3582
Additional Details: with inline injection pump
| Head Torque | Main Torque | Rod Torque |
| all bolts 66 ft/lbs, all bolts 66 ft/lbs again, longest bolts only tighten in sequence 89 ft/lbs, longest bolts only 89 ft/lbs again, all bolts +90 degrees | 44, 88, 129 ft/lbs | 22, 44 ft/lbs, +60 degrees |
| Intake Valve Lash | Exhaust Valve Lash |
| 010" cold (.254 mm) | 025" cold (.635 mm) |
Case (Case IH) 550G Crawler Overhaul Engine Kit (Diesel - 239 CID) - RP935146
- Brand Category: Case | Case-IH
- Product Code: RP935146[935146]-550G
- $751.40
-
$710.07
