Description

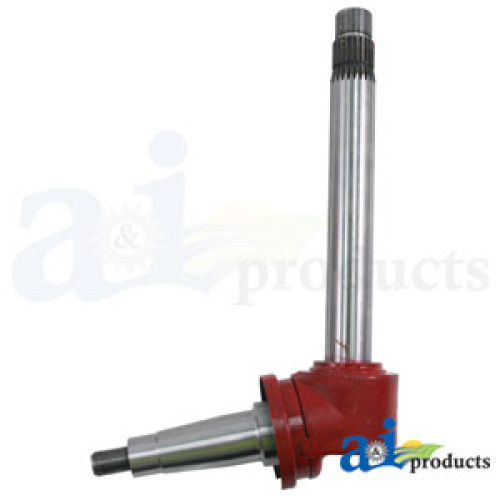

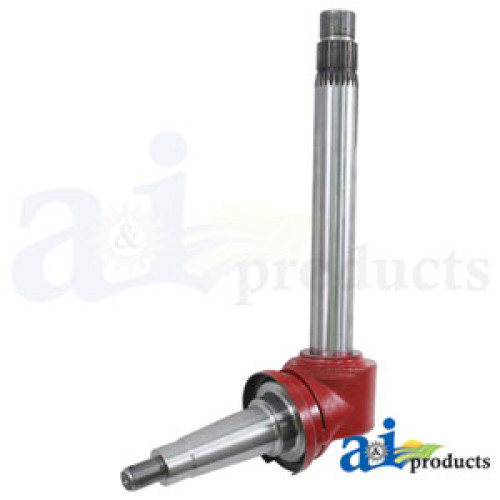

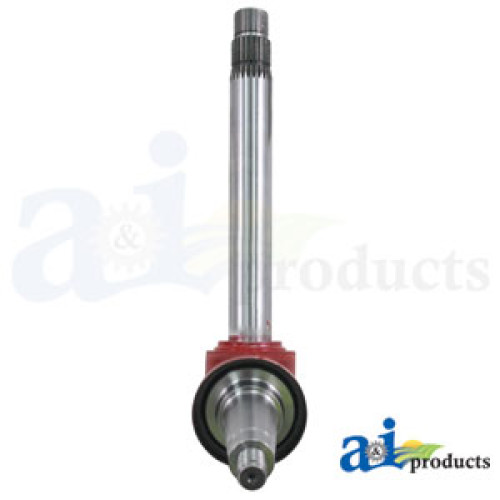

Case | Case-IH 5088 Front Axle/Steering Parts | Spindles and Related Parts | 71785HD

This spindle is the same as 71785C92 except it has a Heavy Duty bottom forging.

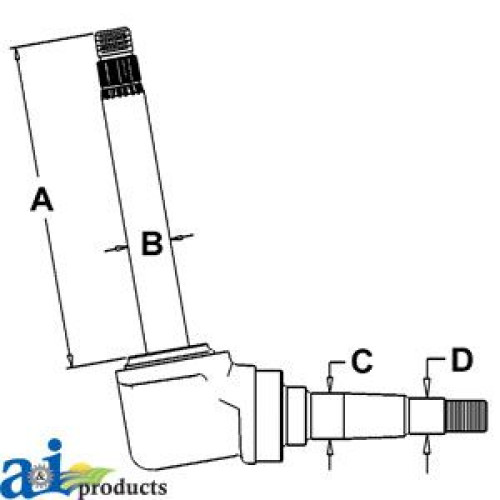

Dim A (1): A - 12.750"
Dim B (2): B - 1.667"
Dim C (3): C - 1.780"
Dim D (4): D - 1.375"
Replaces: 401768R92
Spline Count: 24

Case | Case-IH 5088 Tractor Spindle, Steering (RH/LH)

Brand Category: Case | Case-IH
Product Code: A-71785HD

$231.22
$227.75
